Fit Base, Automatic
›
Repair and Diagnosis
›
Body & Frame
›
Frames, Subframes & Crossmembers
›
Frame Repair Diagram
›
Top View
Top View

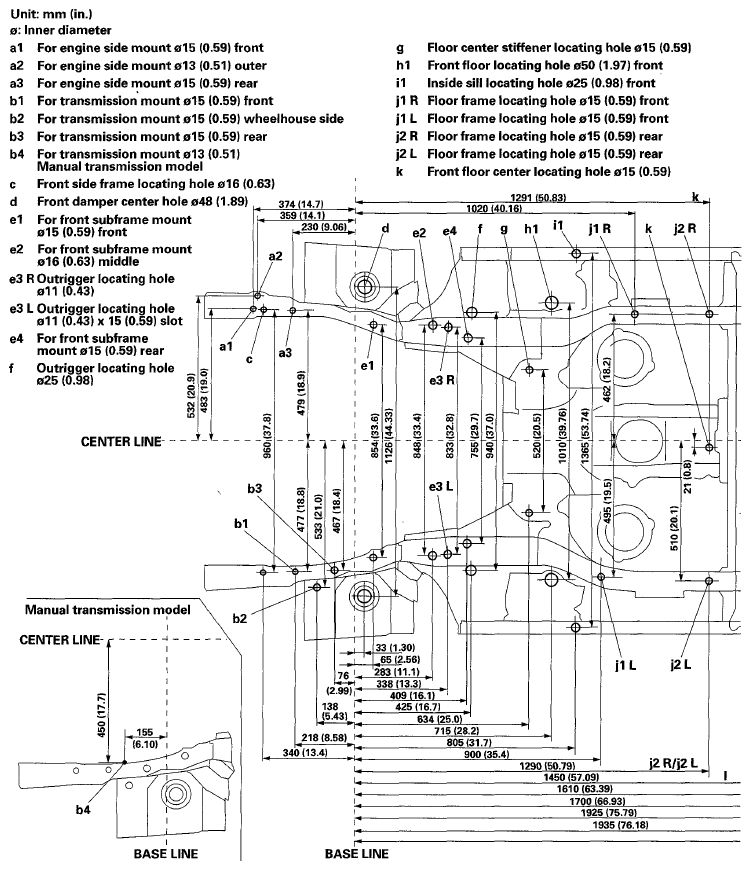

Fig 1: Top View Frame Repair Diagram (1 Of 2) With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

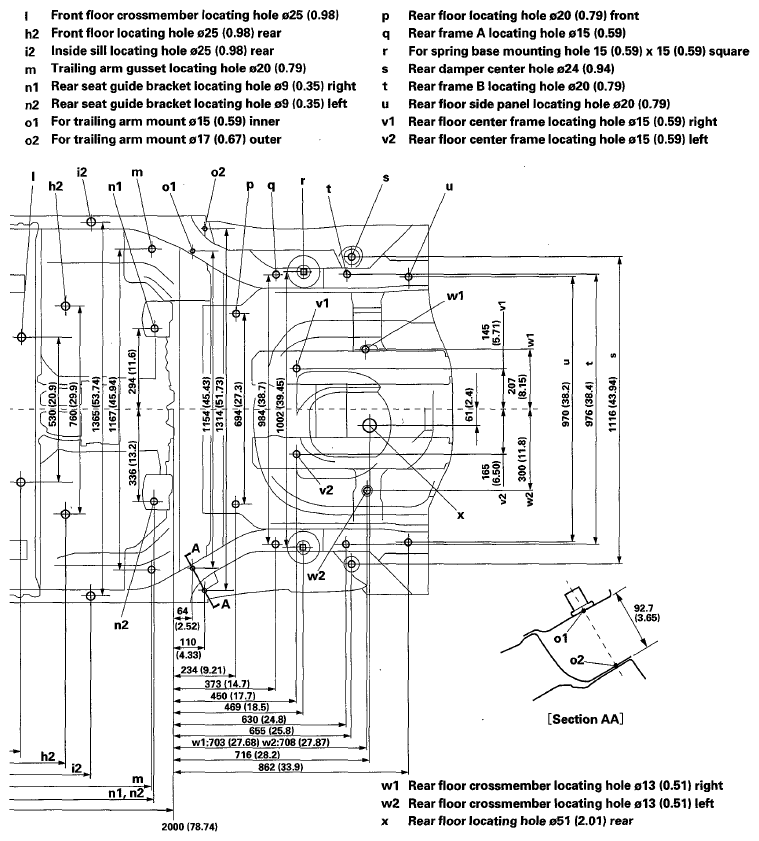

Fig 2: Top View Frame Repair Diagram (2 Of 2) With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
