2010
›
Fit Base, Standard
›
Repair and Diagnosis
›
Brakes
›
Traction Control
›
VSA (Vehicle Stability Assist System) Components
›
Circuit Diagram
Circuit Diagram

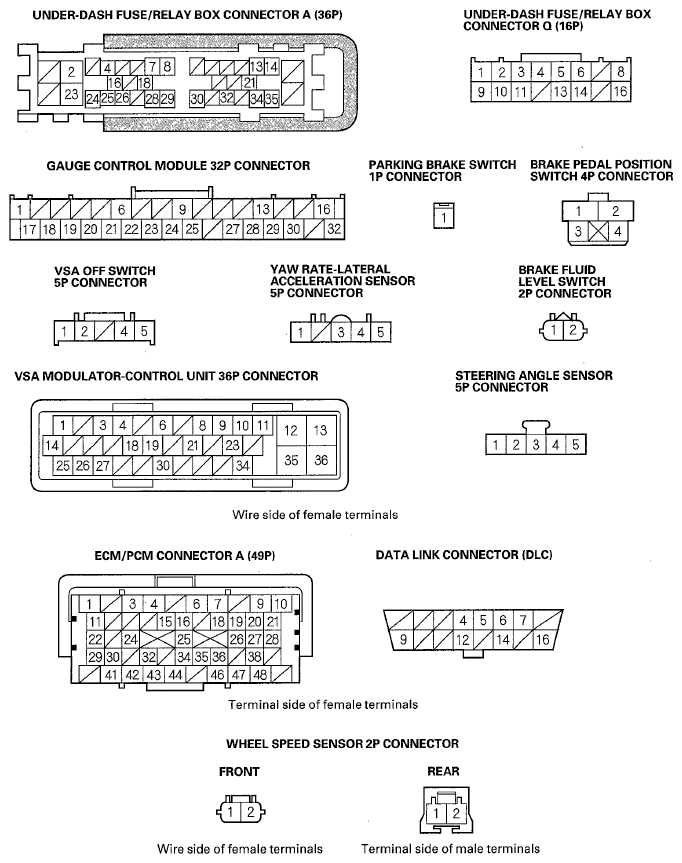

Fig 1: Identifying VSA Circuit Diagram (1 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

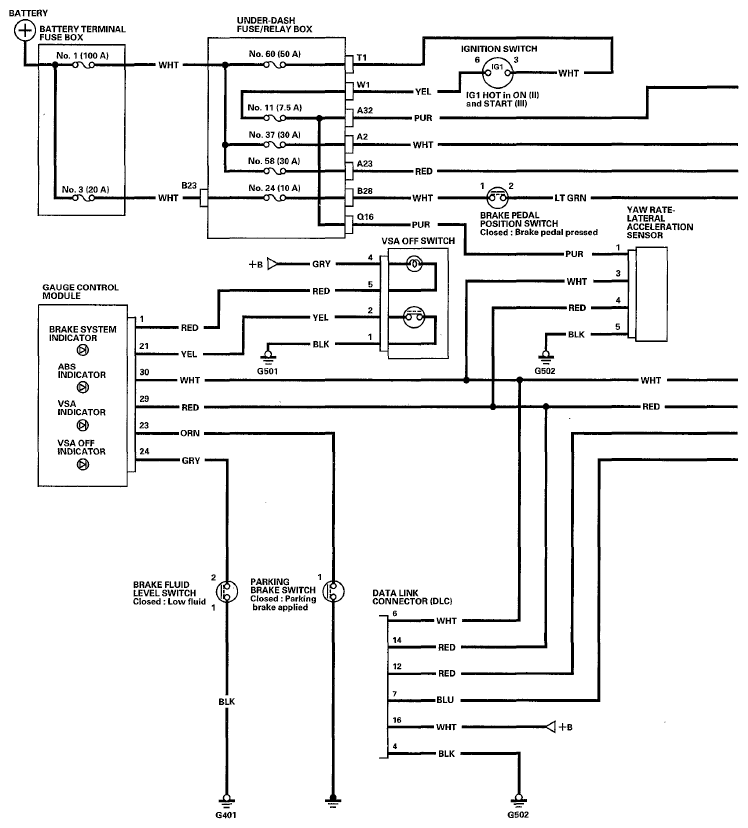

Fig 2: Identifying VSA Circuit Diagram (2 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

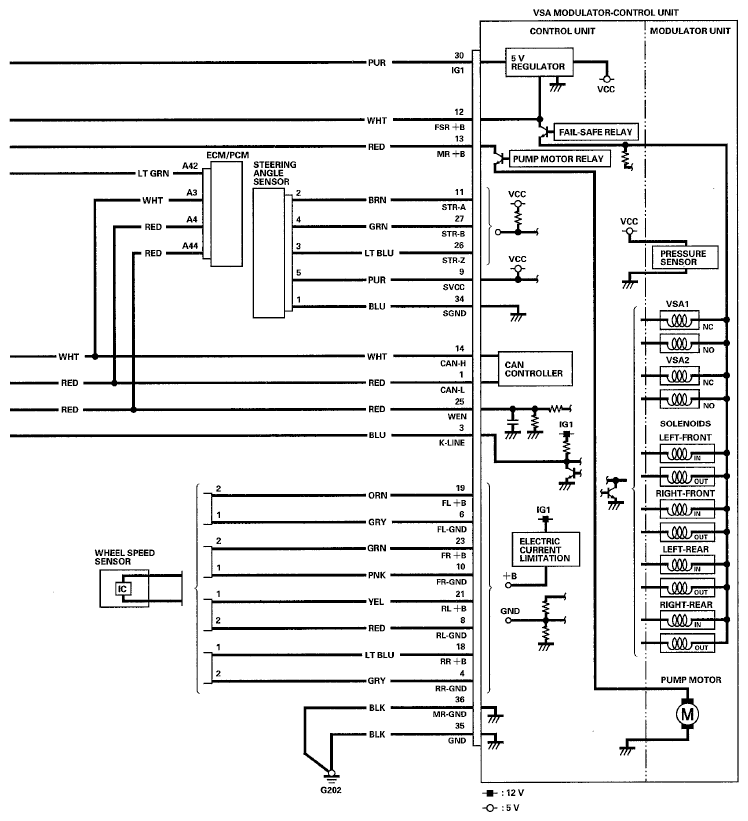

Fig 3: Identifying VSA Circuit Diagram (3 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
