Component Location Index

'07 model

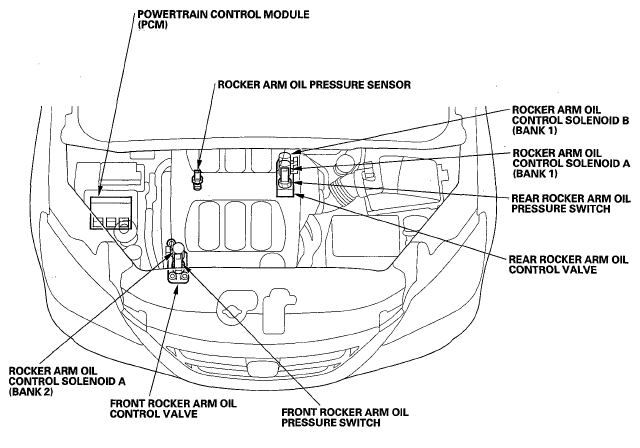

Fig 1: Identifying Variable Cylinder Management (VCM) System Components

Courtesy of AMERICAN HONDA MOTOR CO., INC.

'08-10 models

Fig 2: Identifying Variable Cylinder Management System Component Location

Courtesy of AMERICAN HONDA MOTOR CO., INC.
