CR-Z Base, Automatic CVT
›
Repair and Diagnosis
›
Brakes
›
Traction Control
›
VSA System Components
›
Circuit Diagram
Circuit Diagram

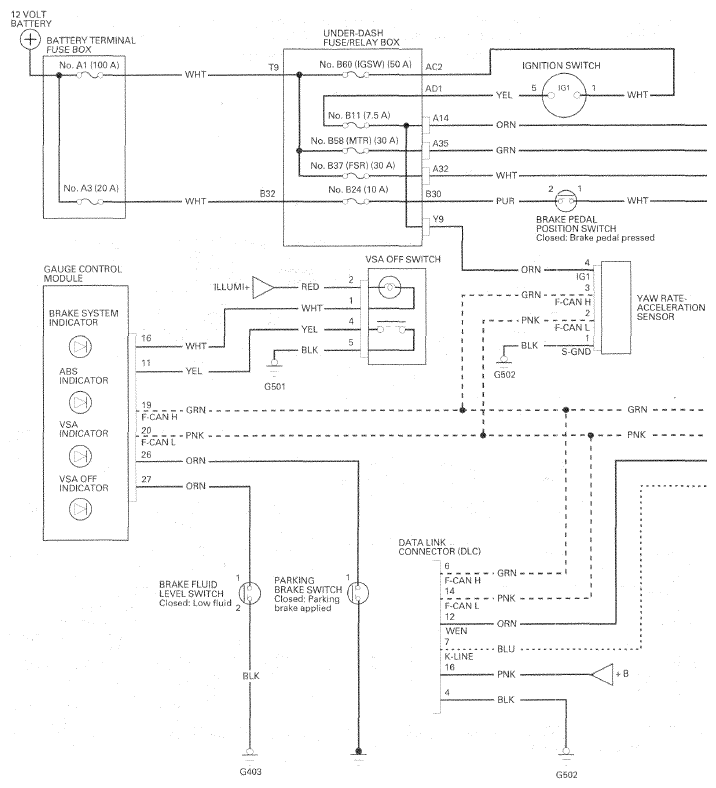

Fig 1: VSA System - Circuit Diagram (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

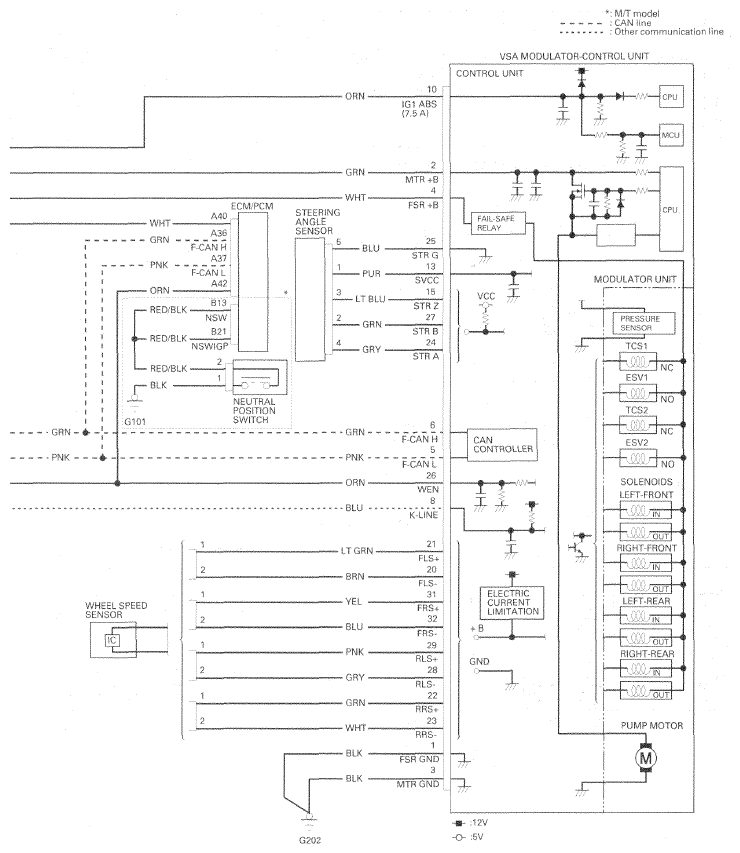

Fig 2: VSA System - Circuit Diagram (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

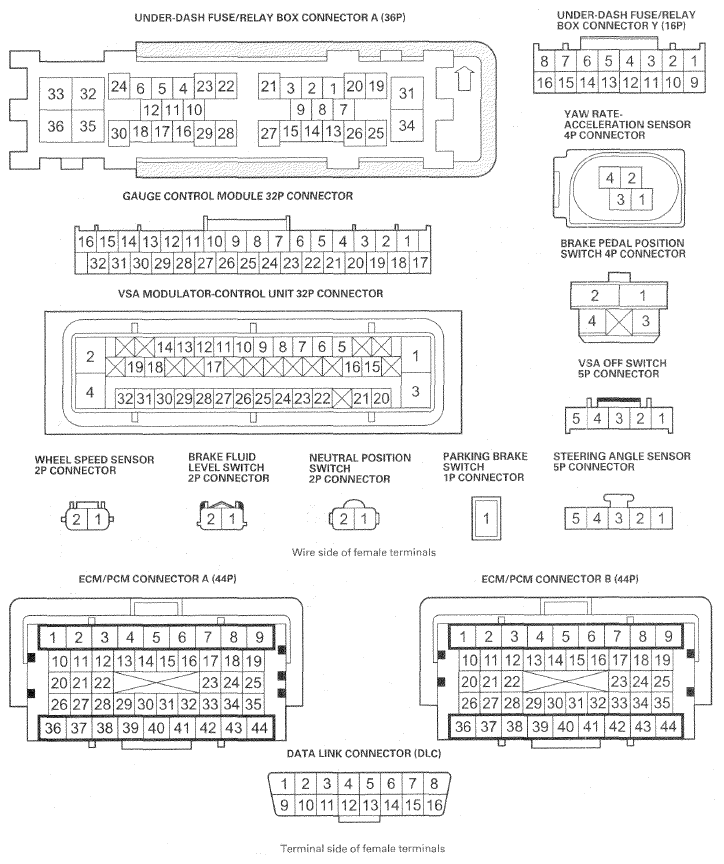

Fig 3: Identifying VSA System Connectors
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
