CR-Z Base, Automatic CVT
›
Repair and Diagnosis
›
Transmission
›
Automatic Trans
›
CVT
›
CVT
›
Component Location Index
Component Location Index

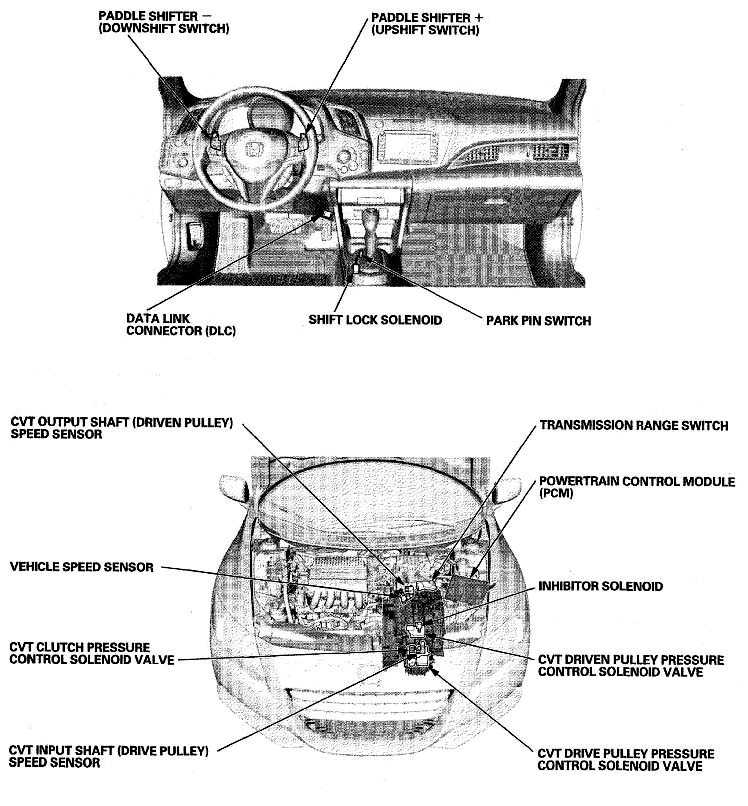

Fig 1: CVT Component Location Index (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

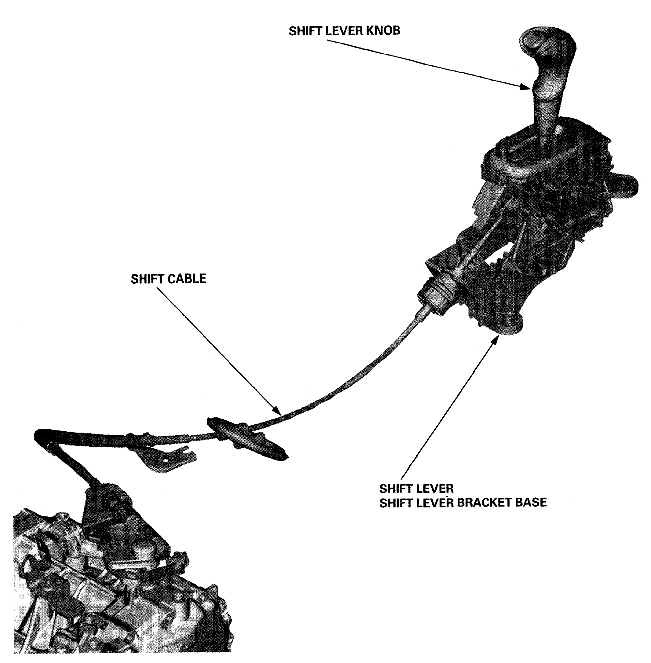

Fig 2: CVT Component Location Index (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
