Ignition System (R18A1 Engine)
›
Circuit Diagram
Circuit Diagram

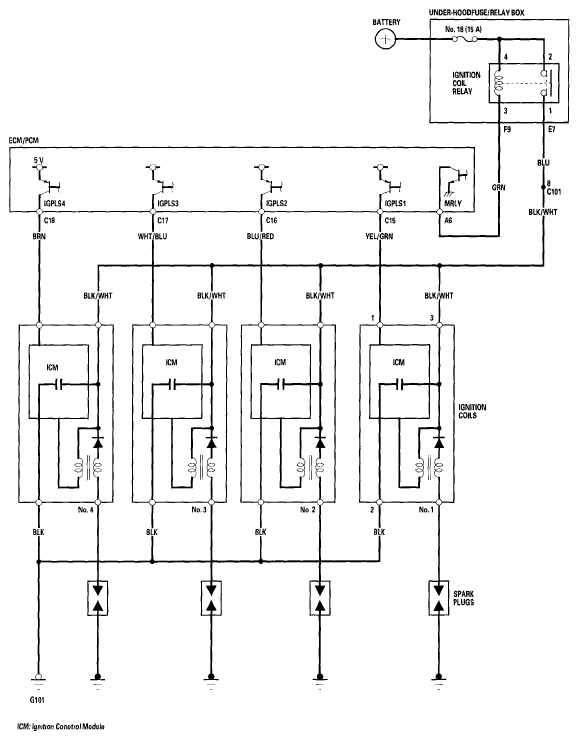

Fig 1: Ignition System - Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
