EVAP Canister Replacement

Remove the cover (A).

Fig 1: Identifying Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the EVAP canister guard pipe (A).

Fig 2: EVAP Canister Guard Pipe With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

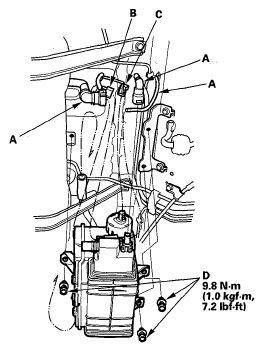

Remove the hoses (A), the FTP sensor connector (B), the EVAP canister Vent shut valve connector (C) and the bolts (D).

Fig 3: Hoses, FTP Sensor Connector, EVAP Canister Vent Shut Valve Connector & Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the EVAP canister.
Install the parts in the reverse order of removal.
