Fit Base, Automatic
›
Repair and Diagnosis
›
Body & Frame
›
Frames, Subframes & Crossmembers
›
Frame
›
Frame Repair Diagram
›
Side View
Side View

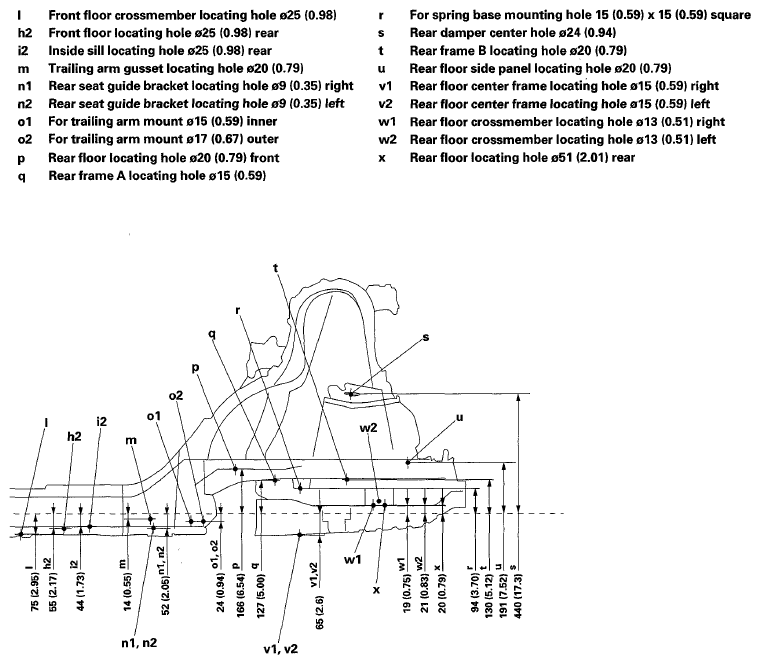

Fig 1: Side View Frame Repair Diagram (1 Of 2) With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

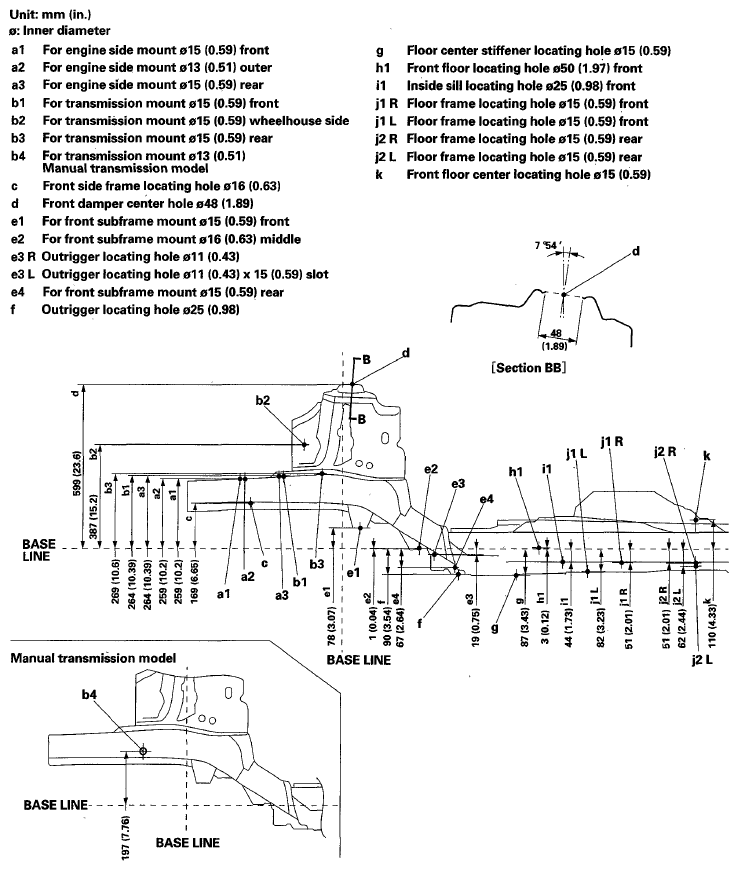

Fig 2: Side View Frame Repair Diagram (2 Of 2) With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
