TCS Features

When a drive wheel loses traction on a slippery road surface and starts to spin, the VSA modulator-control unit applies brake pressure to the spinning wheel and sends an engine torque control request to the ECM/PCM to slow the spinning wheel and keep traction.

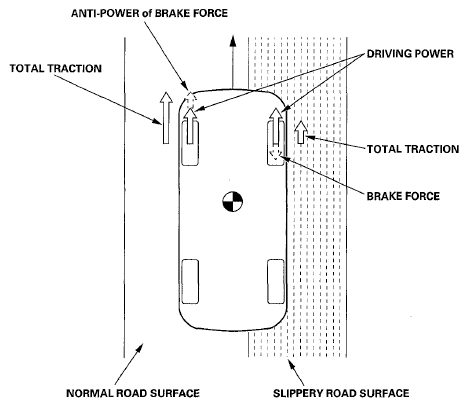

Fig 1: Identifying TCS Features Diagram
G05959274Courtesy of AMERICAN HONDA MOTOR CO., INC.
