Under-dash Fuse/Relay Box - Fuse 29

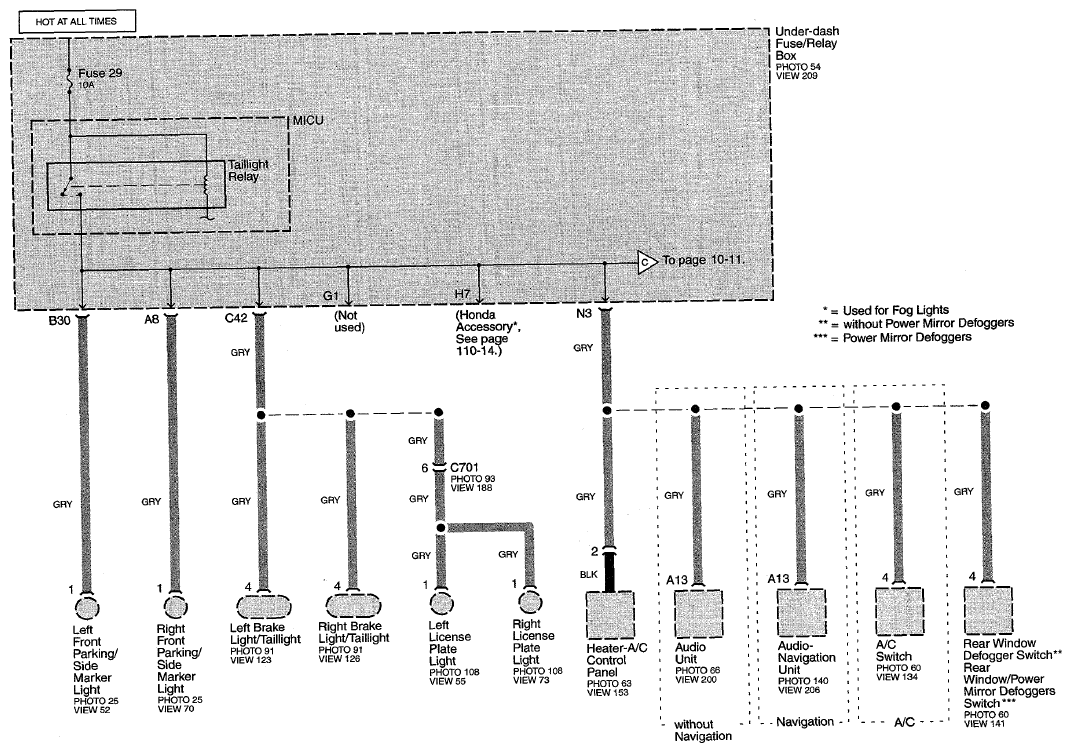

Fig 1: Under-Dash Fuse/Relay Box Circuit Diagram - Fuse 29 (Page 10-10)

G07757542

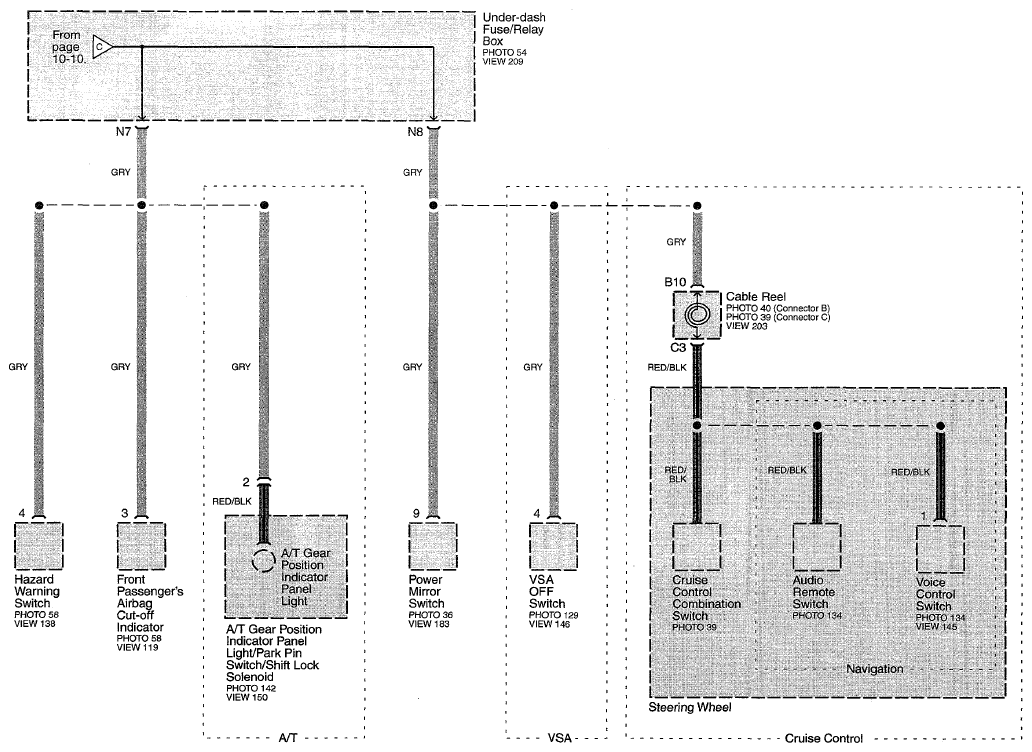

Fig 2: Under-Dash Fuse/Relay Box Circuit Diagram - Fuse 29 (Page 10-11)

G07757543
