Navigation System Connector Location
WARNING: This page is about a different car, the 2013 Honda Fit and 2012 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Refer to the
audio section for the connector B, C, and G input and outputs

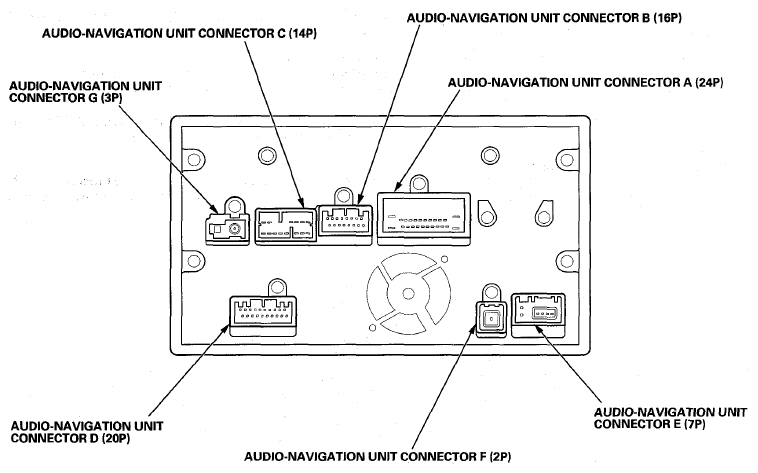

AUDIO UNIT CONNECTOR FOR INPUTS AND OUTPUTS; WITH NAVIGATION
).
