Body & Design Specifications
›
Design Specifications
›
Body Specifications
Body Specifications

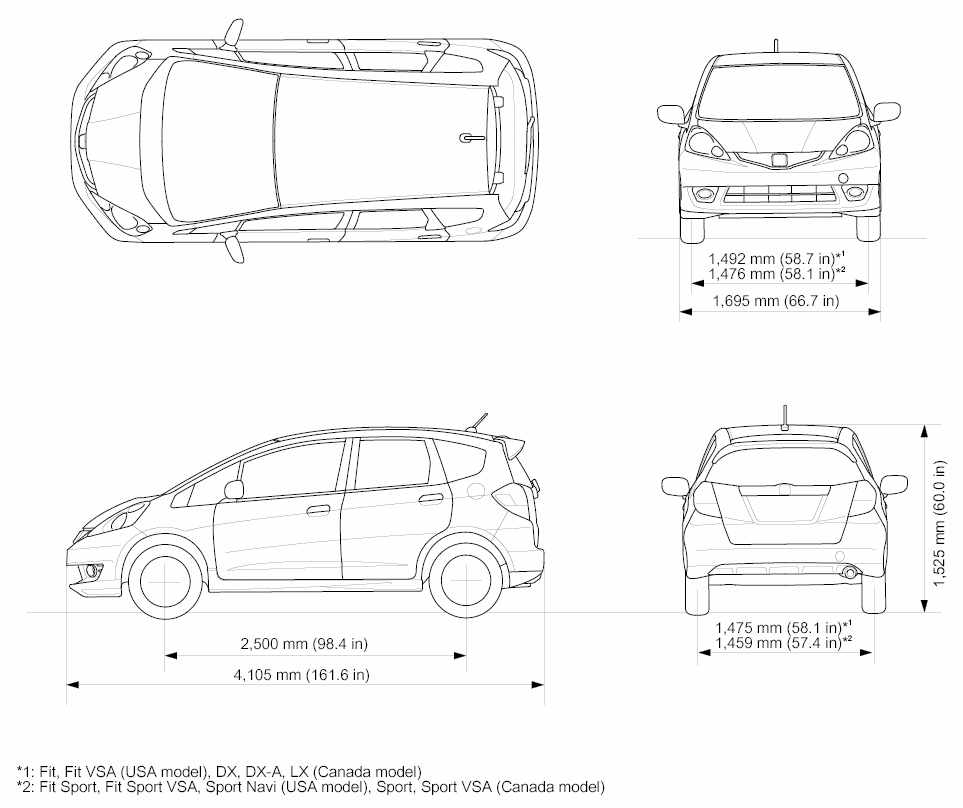

Fig 1: Identifying Body Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
