ECM/PCM (View 204)

Left Side of Engine Compartment
Connector A
- BLK/WHT
- On Left Engine Compartment Wire Harness

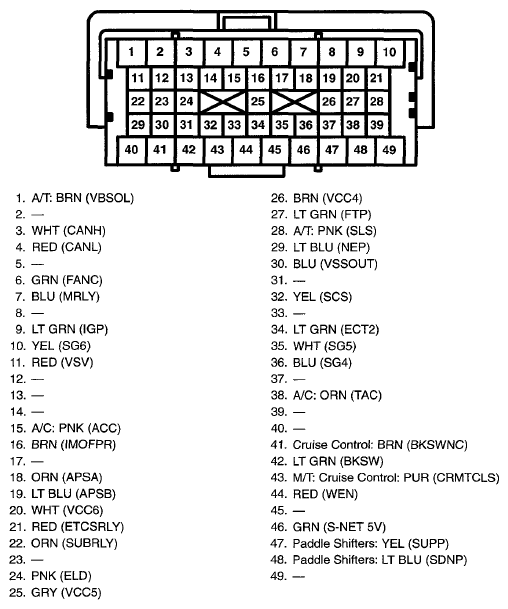

  Fig 1: ECM/PCM Connector Terminal - Connector A (View 204)
Connector B
- BLK/GRY
- On Engine Wire Harness

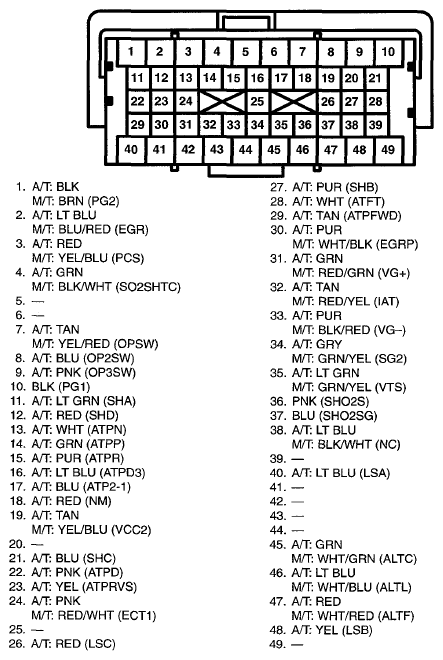

  Fig 2: ECM/PCM Connector Terminal - Connector B (View 204)
Connector C
- BLK/GRN
- On Engine Wire Harness

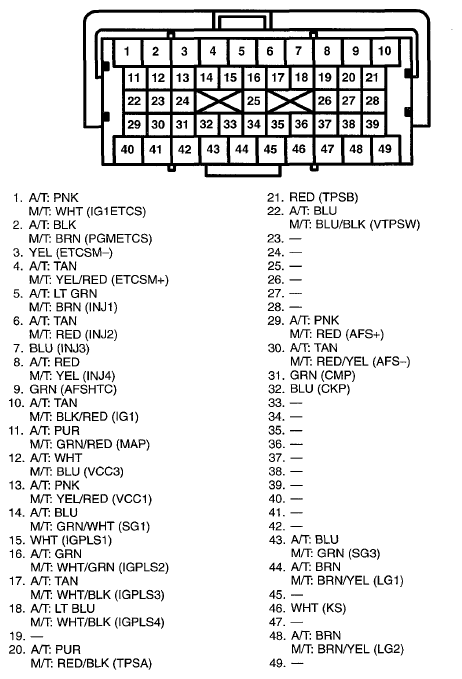

  Fig 3: ECM/PCM Connector Terminal - Connector C (View 204)
