SRS Unit (View 208)

YEL
Under Middle of Dash
Connector A
- On Dashboard Wire Harness

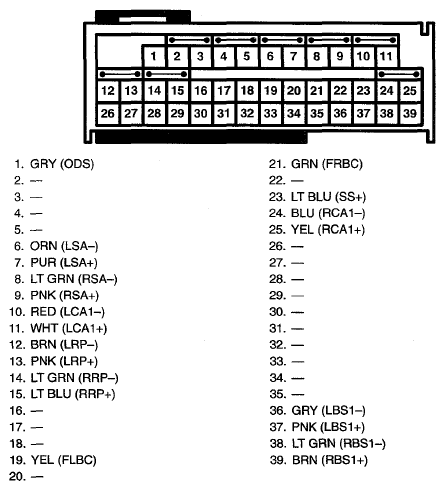

  Fig 1: SRS Unit Connector Terminal - Connector A (View 208)
Connector B
- On Floor Wire Harness

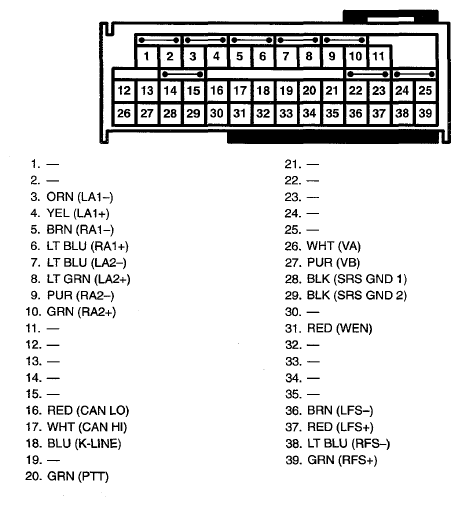

  Fig 2: SRS Unit Connector Terminal - Connector B (View 208)
