Audio System: Navigation

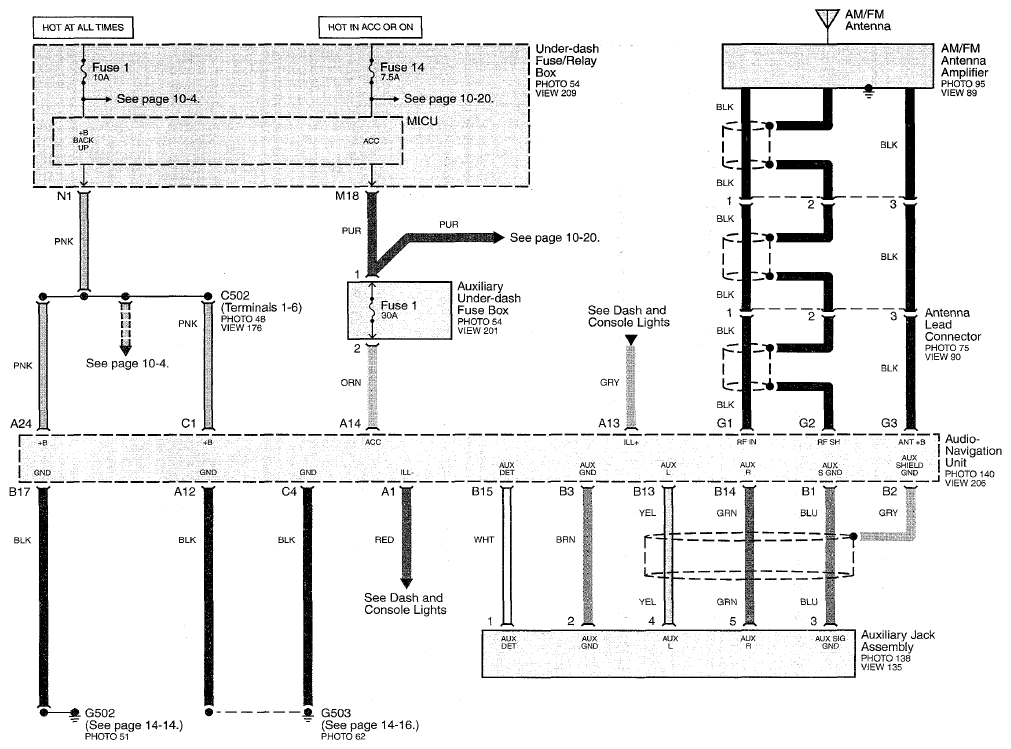

Fig 1: Audio System Circuit Diagram - Navigation (Page 150-5)

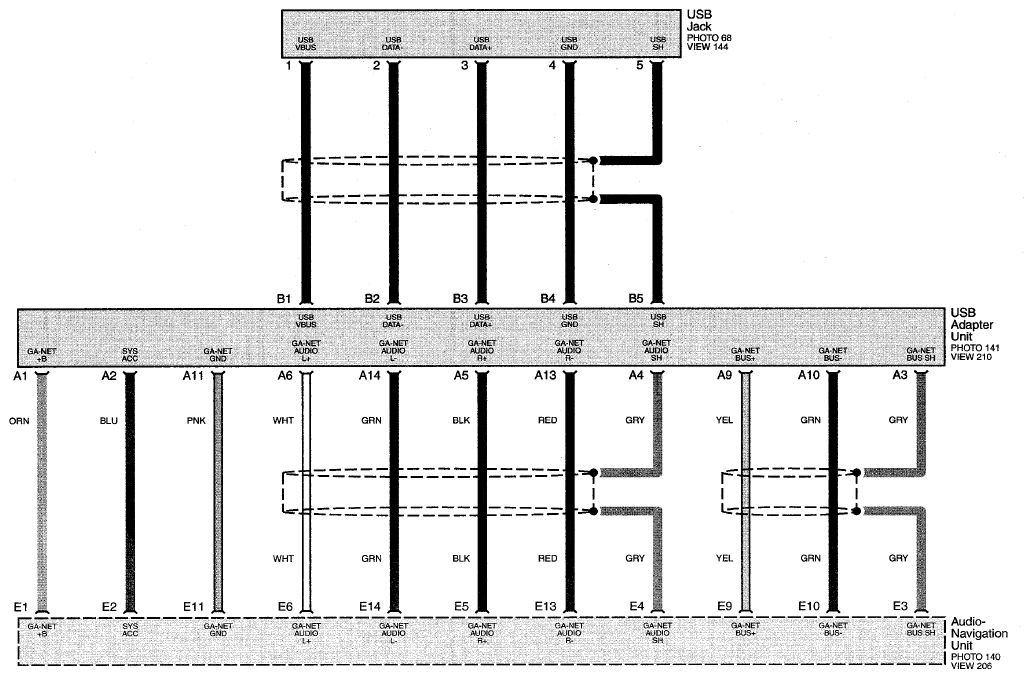

Fig 2: Audio System Circuit Diagram - Navigation (Page 150-6)

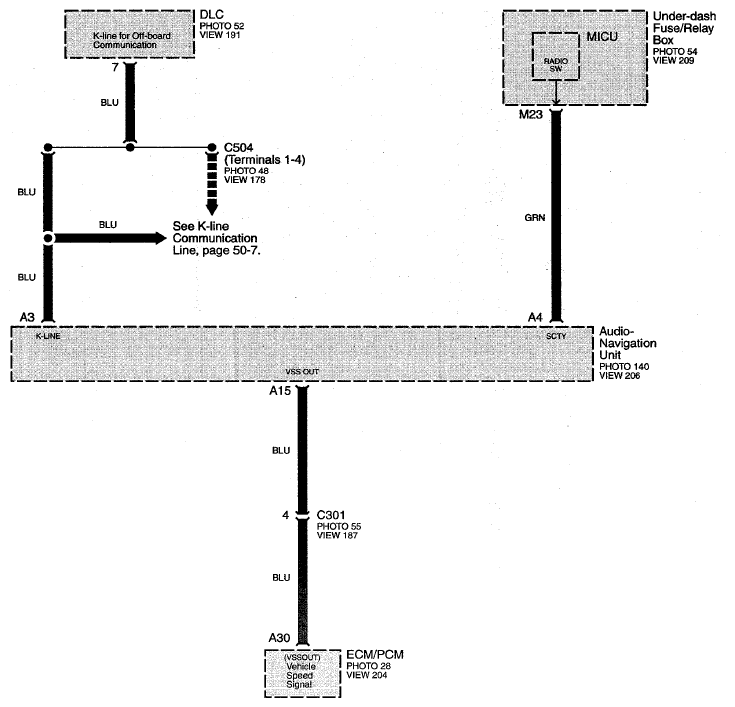

Fig 3: Audio System Circuit Diagram - Navigation (Page 150-7)

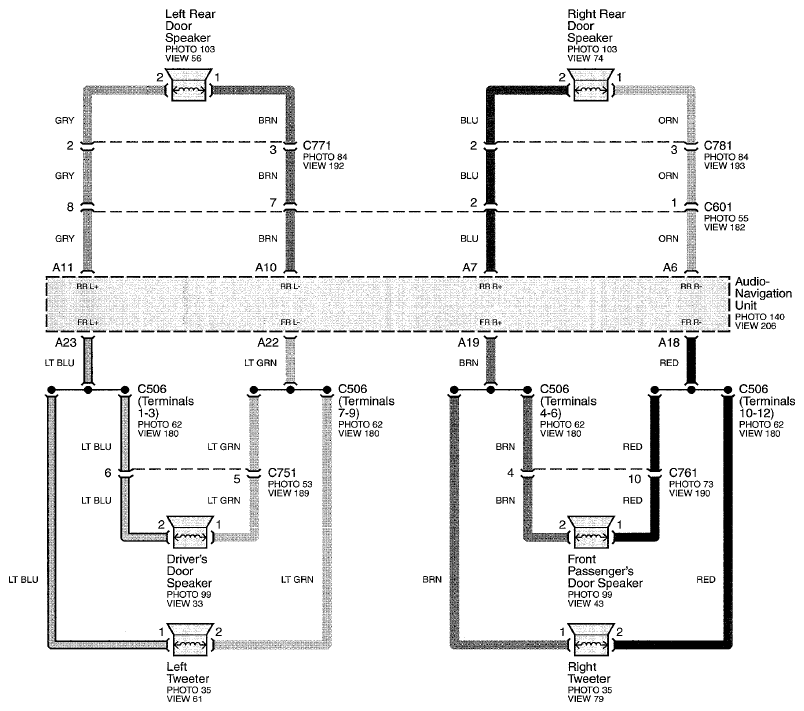

Fig 4: Audio System Circuit Diagram - Navigation (Page 150-8)

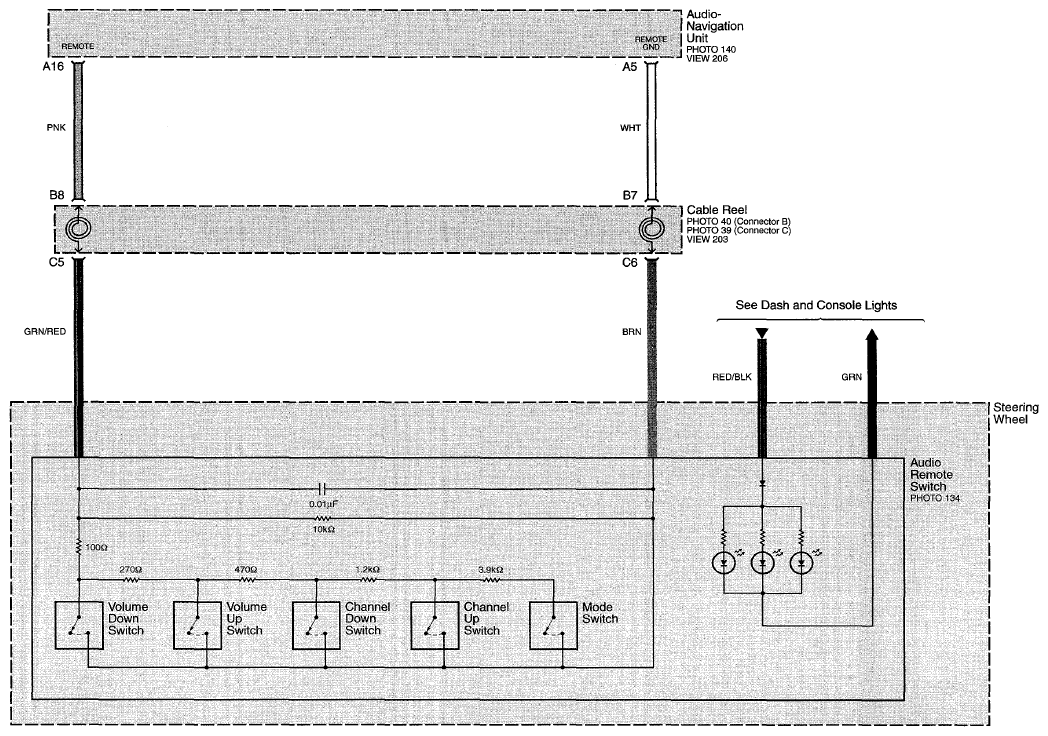

Fig 5: Audio System Circuit Diagram - Navigation (Page 150-9)
