Honda
›
2011
›
Fit Base, Standard
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM Circuit Diagrams
›
Audio System
›
without Navigation
without Navigation

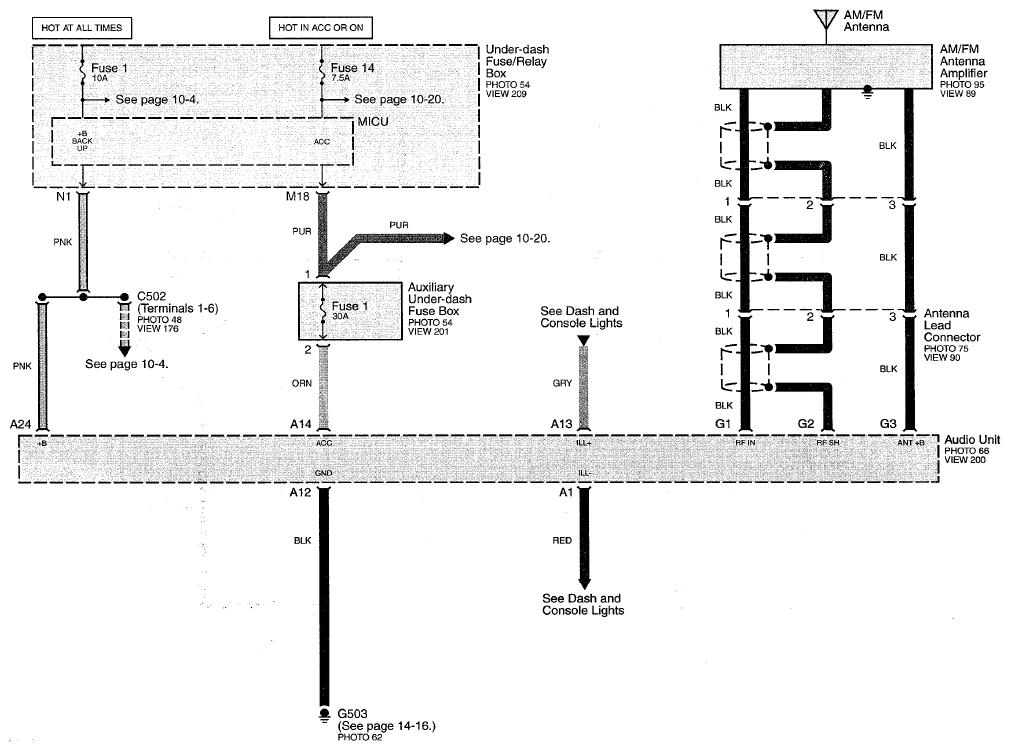

Fig 1: Audio System Circuit Diagram - Without Navigation (Page 150)

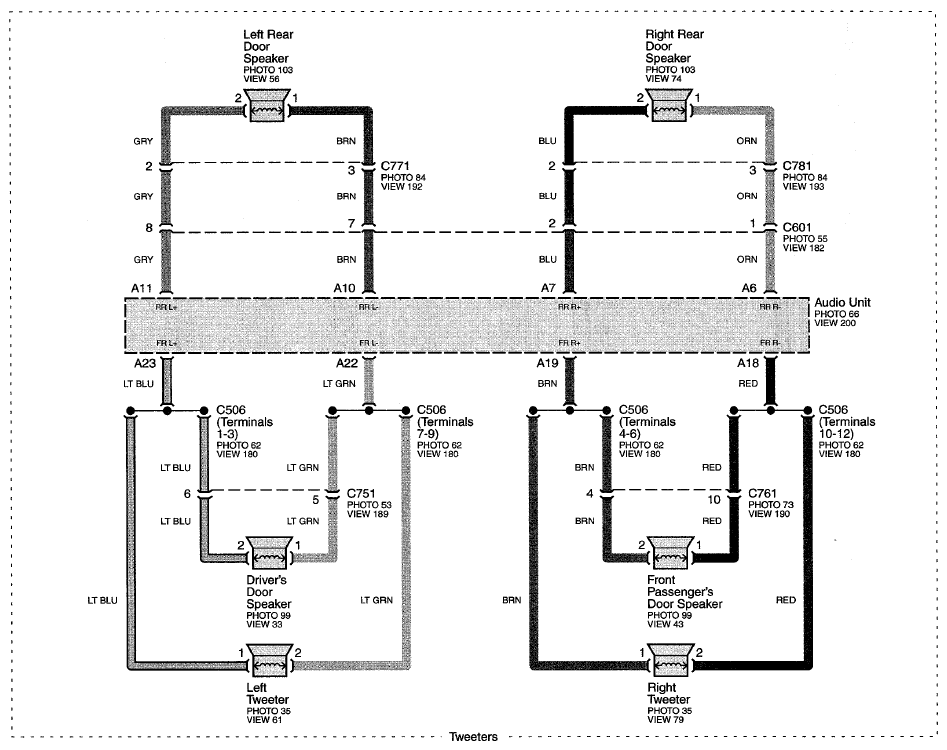

Fig 2: Audio System Circuit Diagram - Without Navigation (Page 150-1)

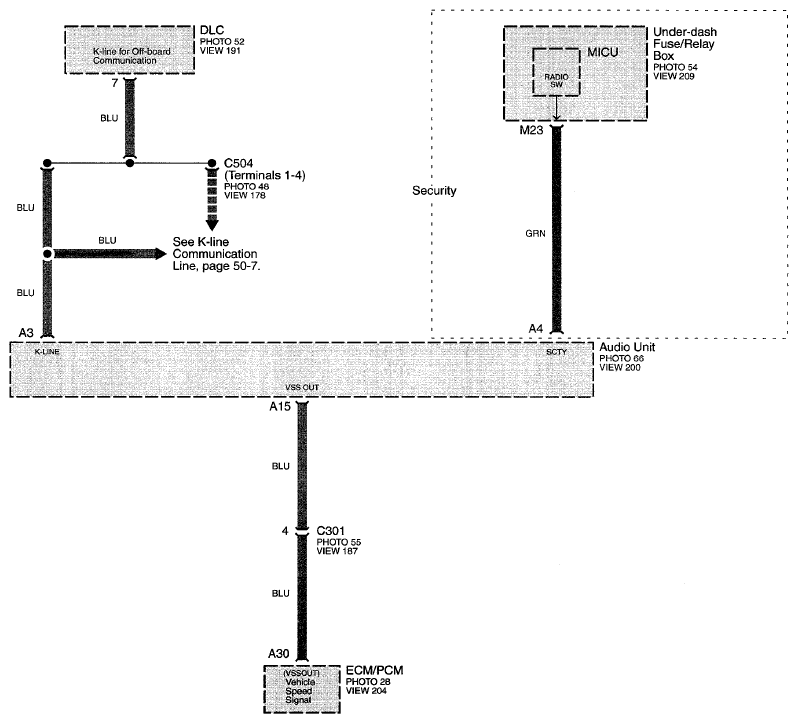

Fig 3: Audio System Circuit Diagram - Without Navigation (Page 150-2)

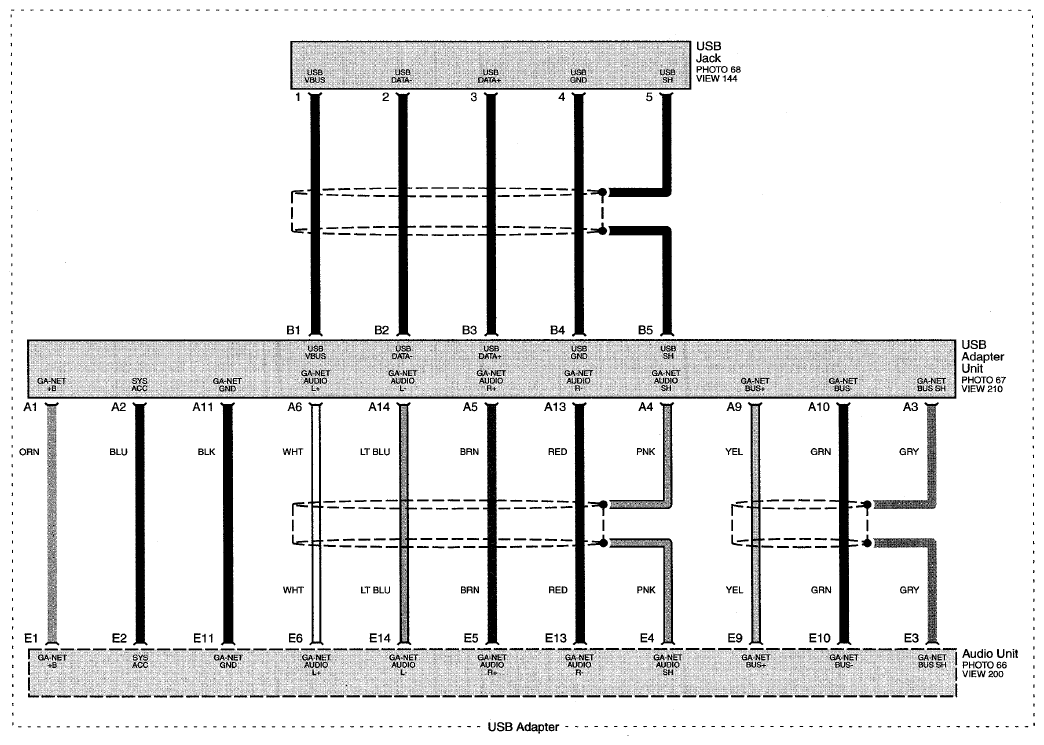

Fig 4: Audio System Circuit Diagram - Without Navigation (Page 150-3)

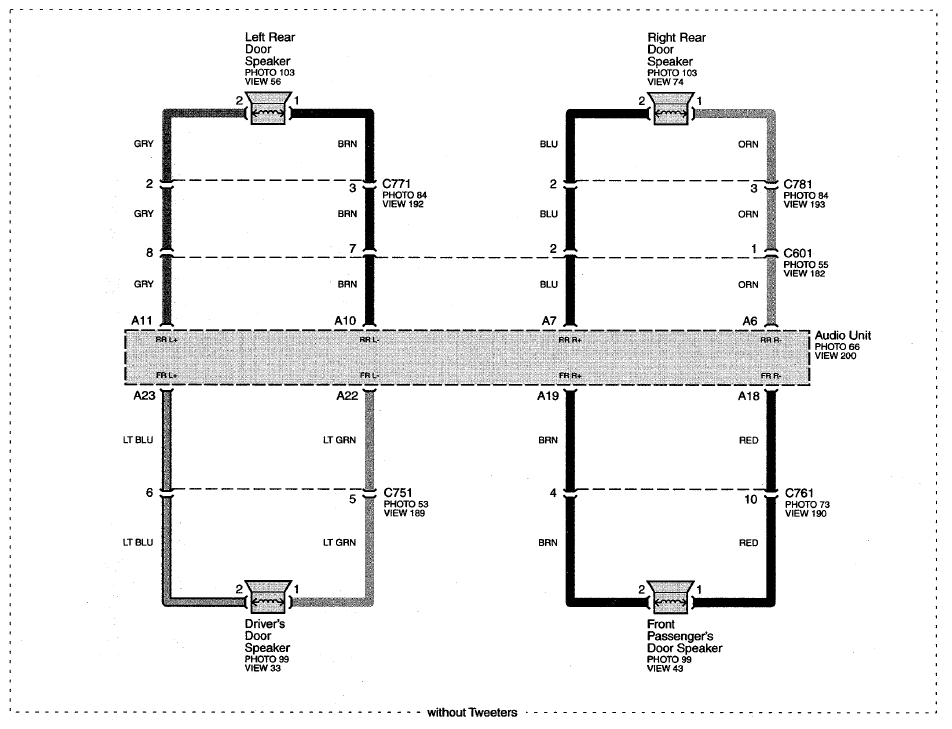

Fig 5: Audio System Circuit Diagram - Without Navigation (Page 150-4)
