Left Front Wheel Speed Sensor (View 54)

BLK
Left Rear of Engine Compartment
On Left Engine Compartment Wire Harness

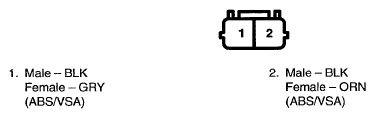

Fig 1: Left Front Wheel Speed Sensor Connector Terminal (View 54)
