VSA Modulator-Control Unit (VSA) (View 199)

BLK/WHT
Right Side of Engine Compartment
On Right Engine Compartment Wire Harness

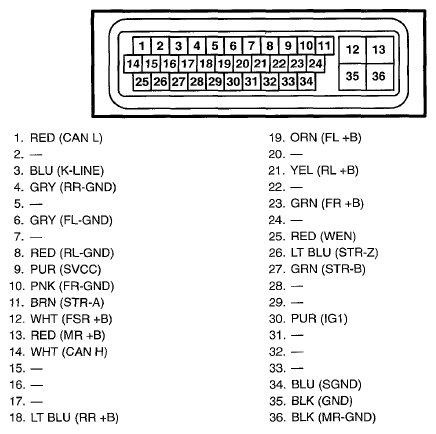

Fig 1: VSA Modulator-Control Unit (VSA) Connector Terminal (View 199)
