Interlock System: Notes

NOTE: For connector or component location "PHOTO", see OEM-COMPONENT LOCATION . For connector "VIEW", see OEM CONNECTOR END VIEWS .

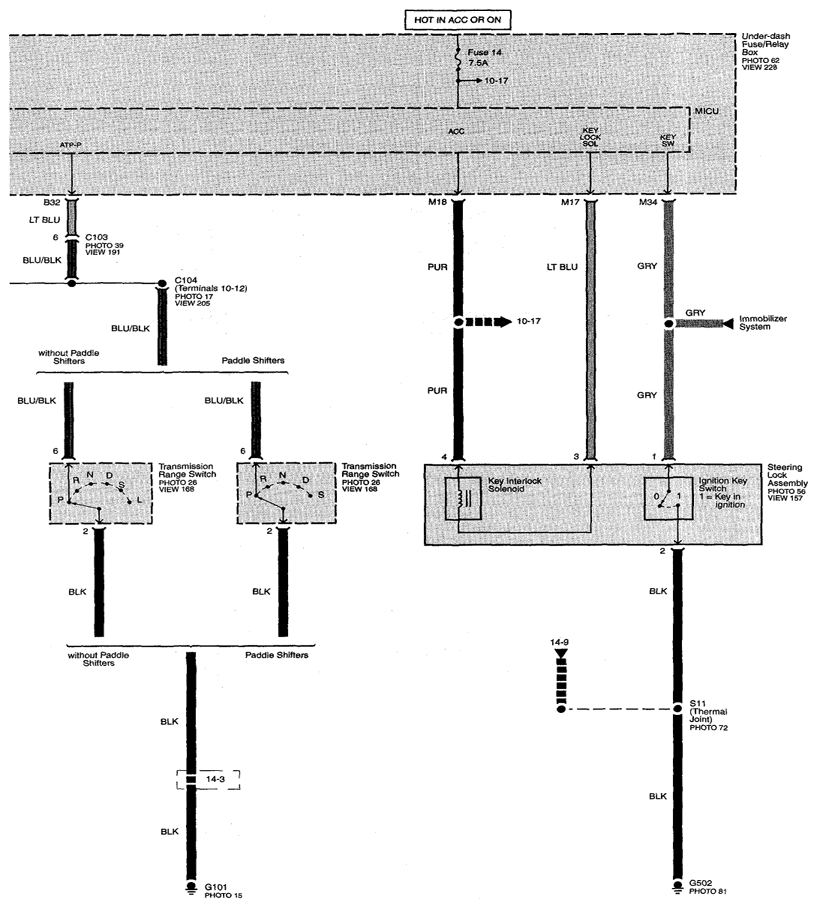

Fig 1: Interlock System Circuit Diagram (Page 138)

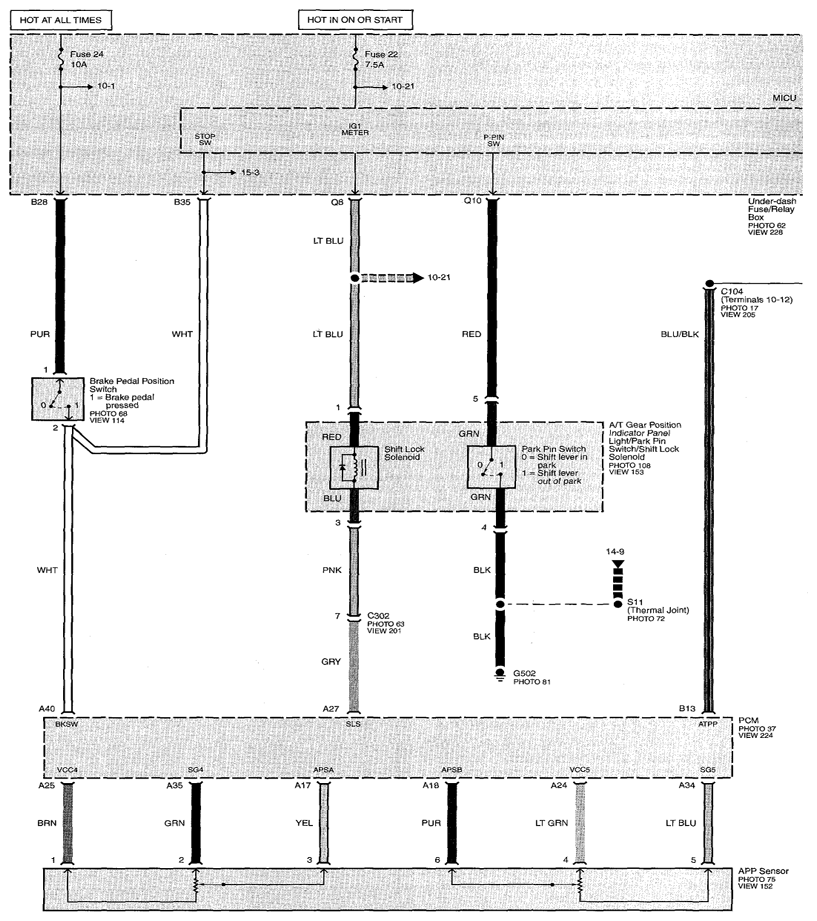

Fig 2: Interlock System Circuit Diagram (Page 138-1)
