Front Subframe Torque

NOTE:

After loosening the subframe mounting bolts, be sure to replace them with new ones.
Loosely install new front subframe mounting bolts, then tighten the bolts to the specified torque in the sequence shown.

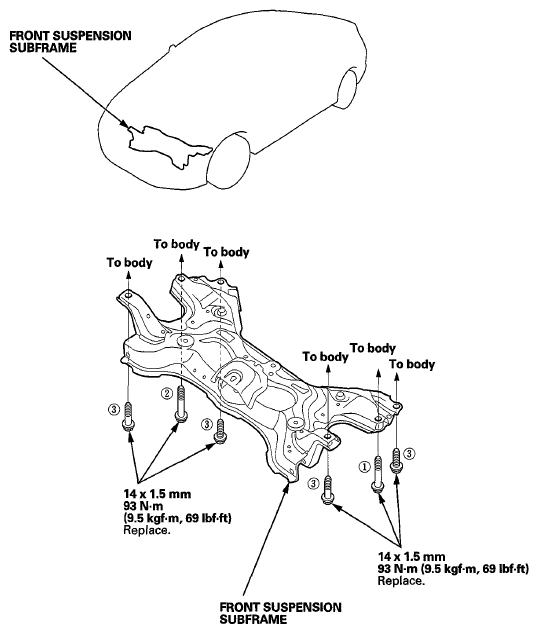

Fig 1: Front Subframe With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.
