Power Mirror Actuator Replacement

Removal

1. Remove the power mirror holder, and the mirror housing (see MIRROR HOLDER REPLACEMENT ).
2. Disconnect the 2P connector (A) from the side turn signal light (B) (if equipped).
   Fig 1: Identifying 2P Connector And Side Turn Signal Light

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Remove the power mirror (see POWER MIRROR REPLACEMENT ).
4. Record the power mirror connector terminals location and the wire harness colors.

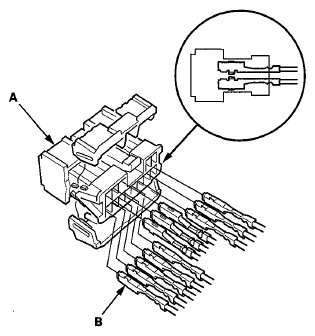

5. Disassemble the power mirror connector (A), and remove the terminals (B) from the connector.
   Fig 2: Identifying Power Mirror Connector And Terminals

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
6. Remove the gasket (A) and the cover (B).
   Fig 3: Identifying Gasket And Cover

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
7. Remove the three screws, and separate the power mirror actuator (A) from the housing (B).
   Fig 4: Identifying Power Mirror Actuator And Housing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

   Installation

8. Route the wire harness of the new actuator through the hole in the bracket and gasket, then install the parts in the reverse order of removal.
9. Insert the new actuator terminals into the connector in the original arrangement.

   Without side turn signal light

   Fig 5: Identifying Actuator Connector Terminal - Without Side Turn Signal Light

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

   With side turn signal light

   Fig 6: Identifying Actuator Connector Terminal - With Side Turn Signal Light

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
10. Apply tape (A) to seal the wire harness.
    Fig 7: Applying Tape To Seal

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
11. Reassemble in the reverse order of disassembly. Be careful not to break the mirror holder when reinstalling it to the actuator (see MIRROR HOLDER REPLACEMENT ).
12. Reinstall the mirror assembly on the door.
13. Operate the power mirror to make sure if works smoothly.
