OEM Circuit Diagrams: Abs

NOTE: For connector or component location "PHOTO", see OEM-COMPONENT LOCATION . For connector "VIEW", see OEM CONNECTOR END VIEWS .

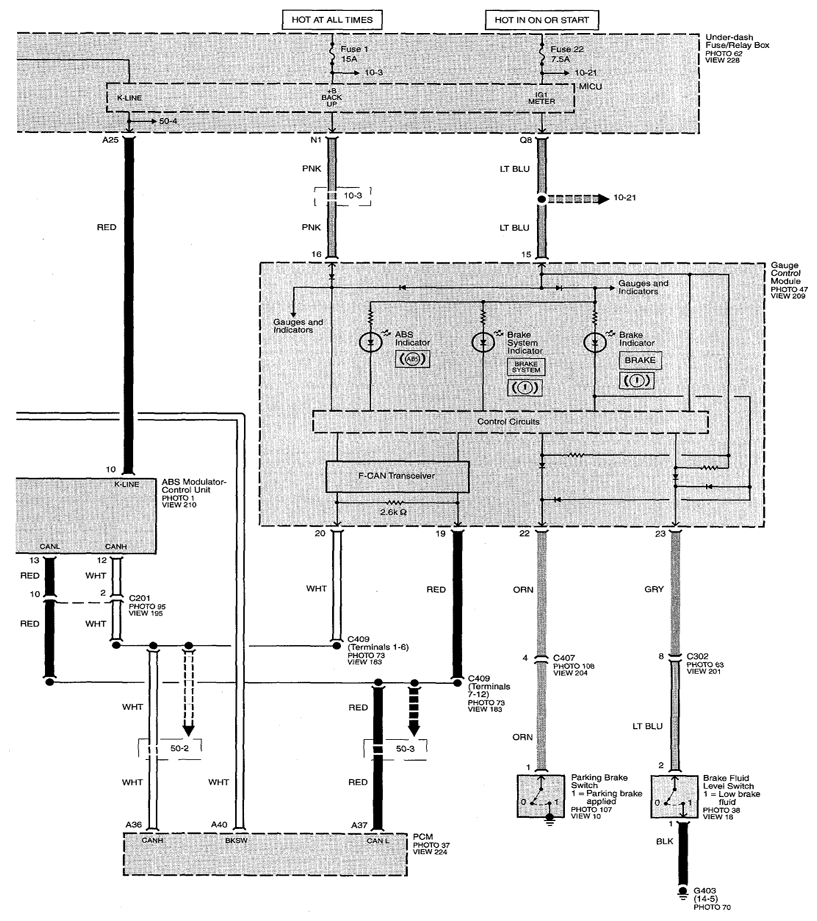

Fig 1: ABS Circuit Diagram (Page 44)

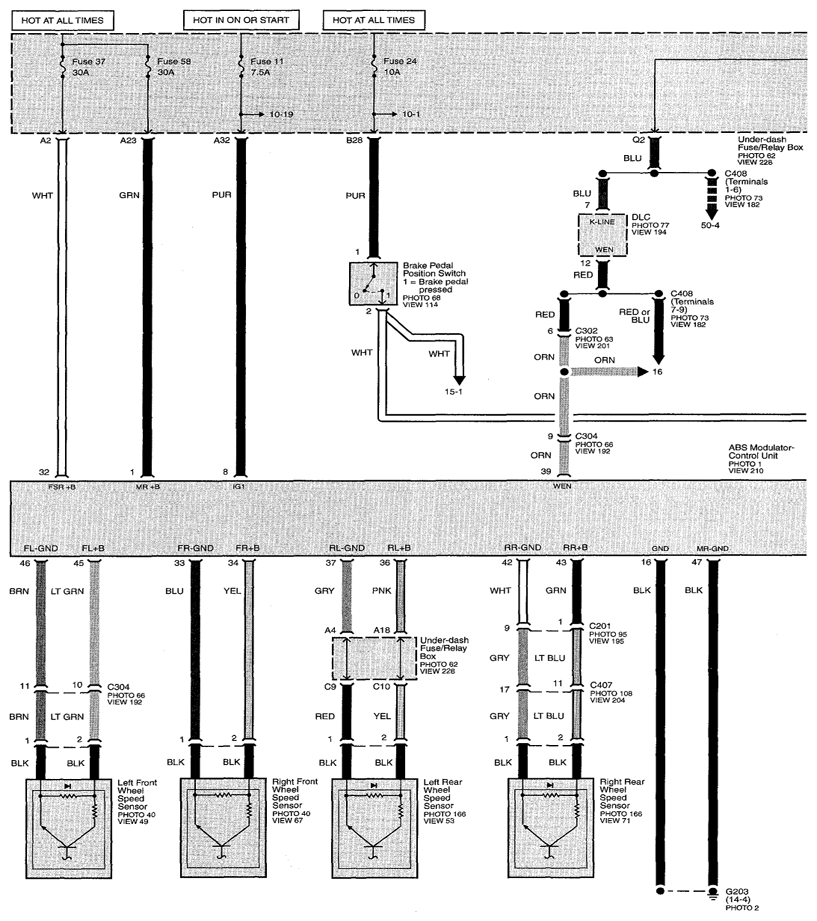

Fig 2: ABS Circuit Diagram (Page 44-1)
