DX without Navigation

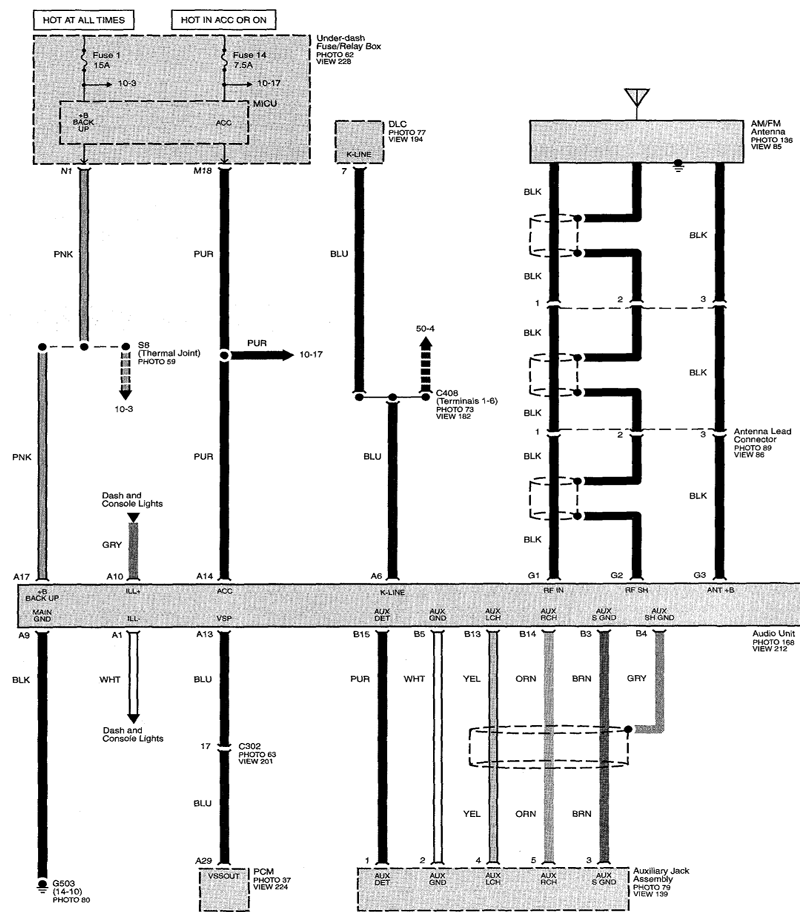

Fig 1: Audio System Circuit Diagram - DX Without Navigation (Page 150)

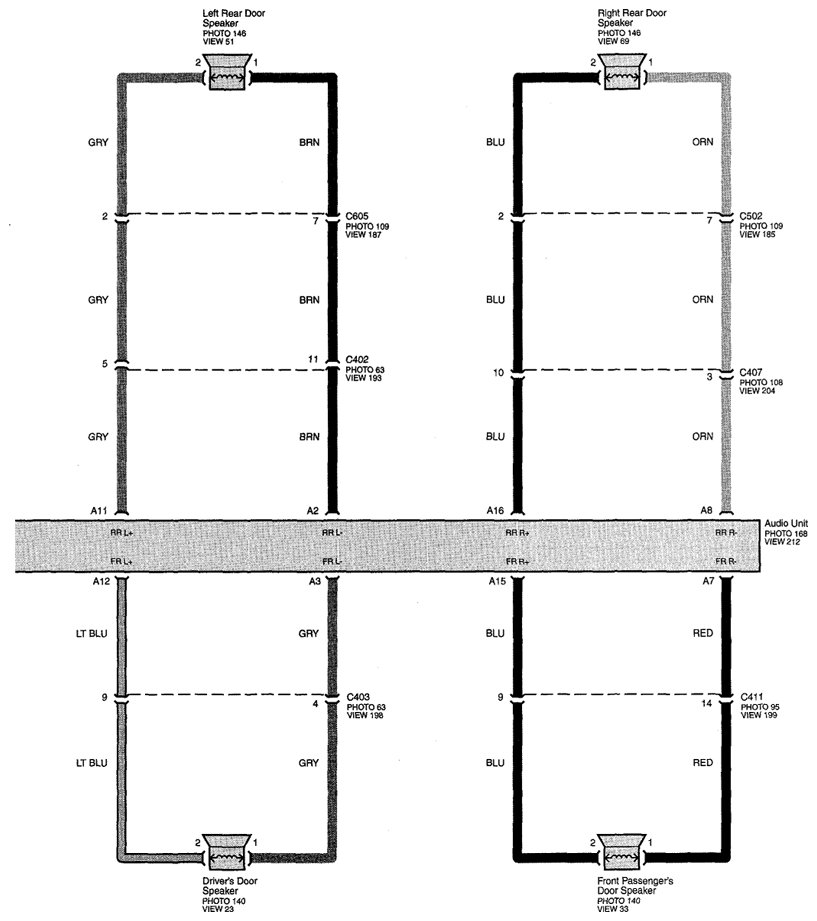

Fig 2: Audio System Circuit Diagram - DX Without Navigation (Page 150-1)
