CVT Controls

NOTE: For connector or component location "PHOTO", see OEM-COMPONENT LOCATION . For connector "VIEW", see OEM CONNECTOR END VIEWS .

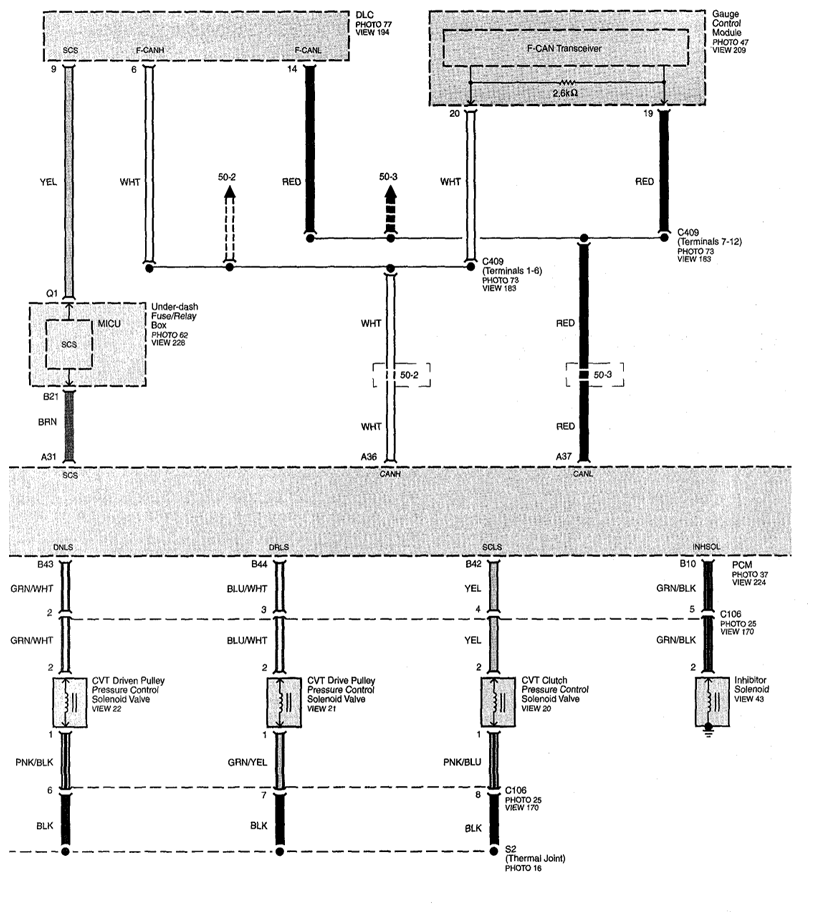

Fig 1: CVT Controls Circuit Diagram (Page 39)

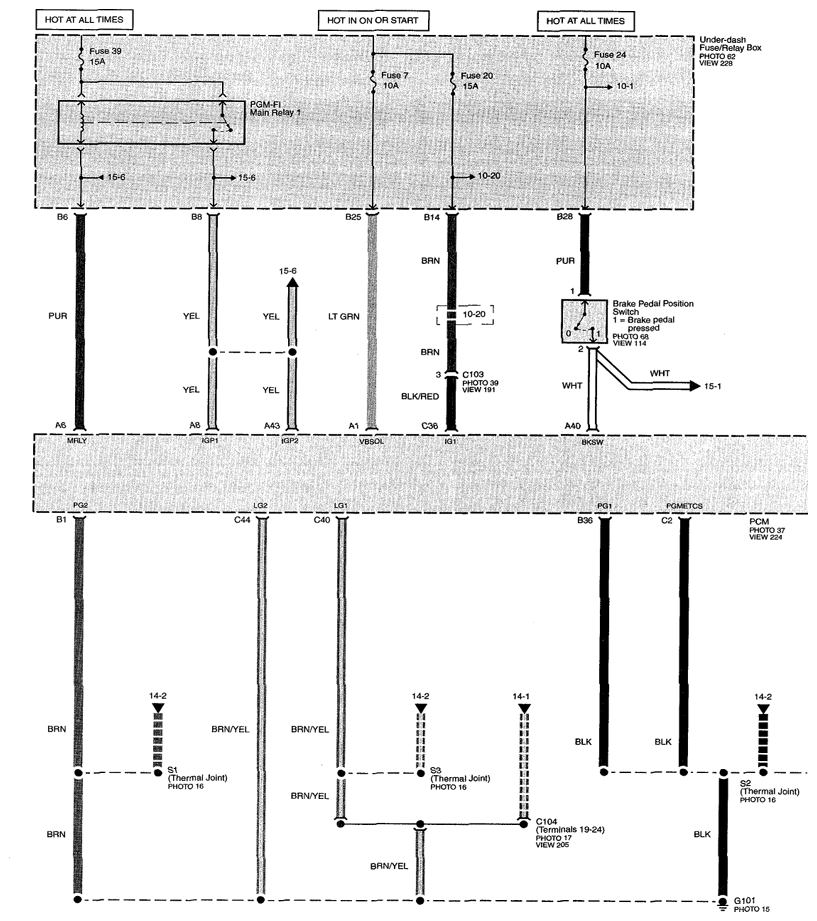

Fig 2: CVT Controls Circuit Diagram (Page 39-1)

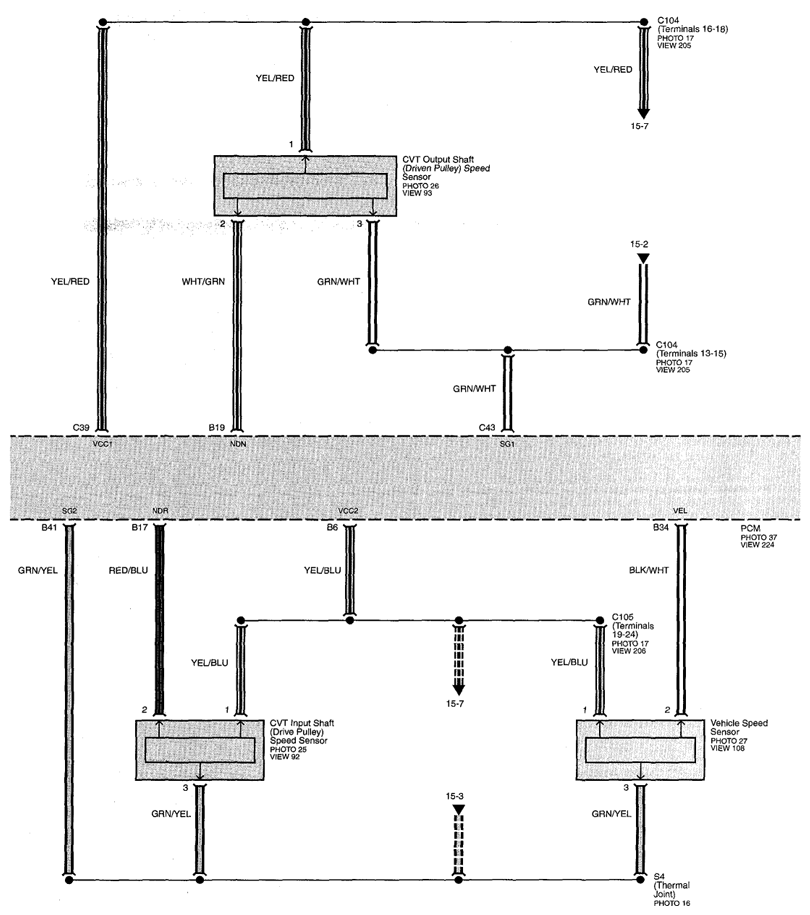

Fig 3: CVT Controls Circuit Diagram (Page 39-2)

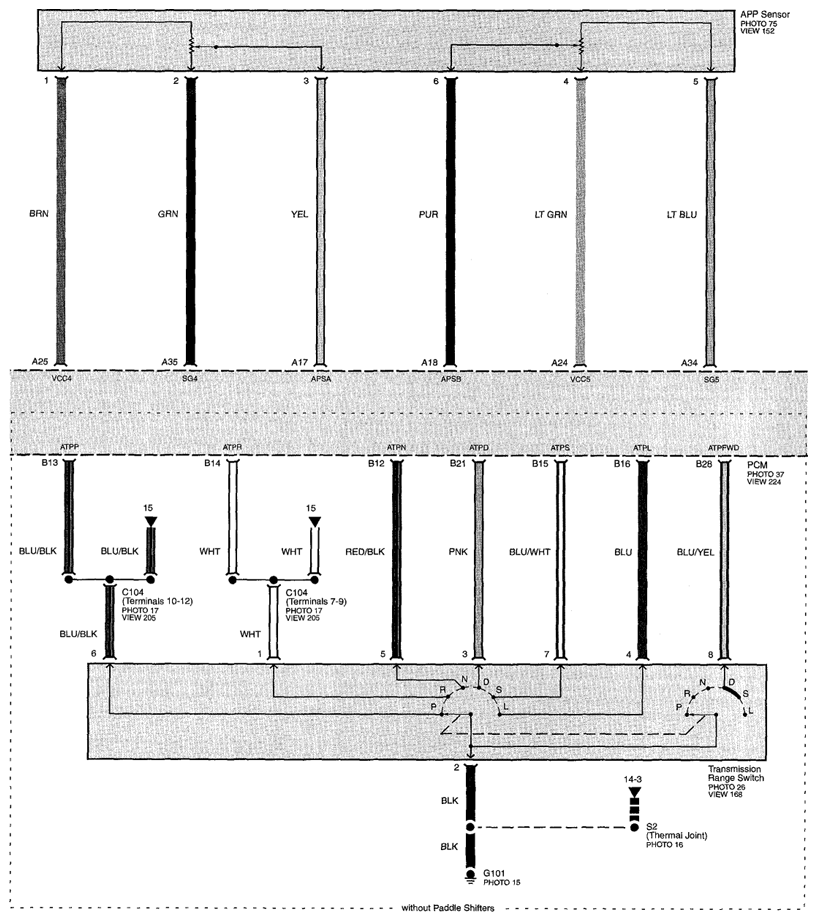

Fig 4: CVT Controls Circuit Diagram (Page 39-3)

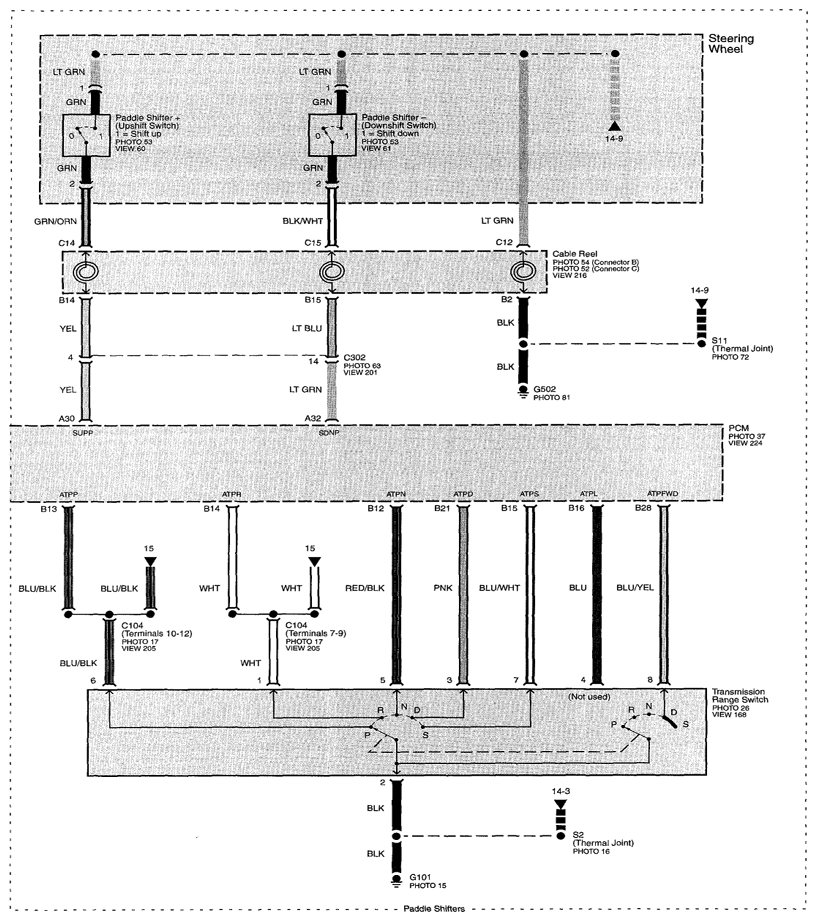

Fig 5: CVT Controls Circuit Diagram (Page 39-4)
