Front Wiper/Washer: Notes

NOTE: For connector or component location "PHOTO", see OEM-COMPONENT LOCATION . For connector "VIEW", see OEM CONNECTOR END VIEWS .

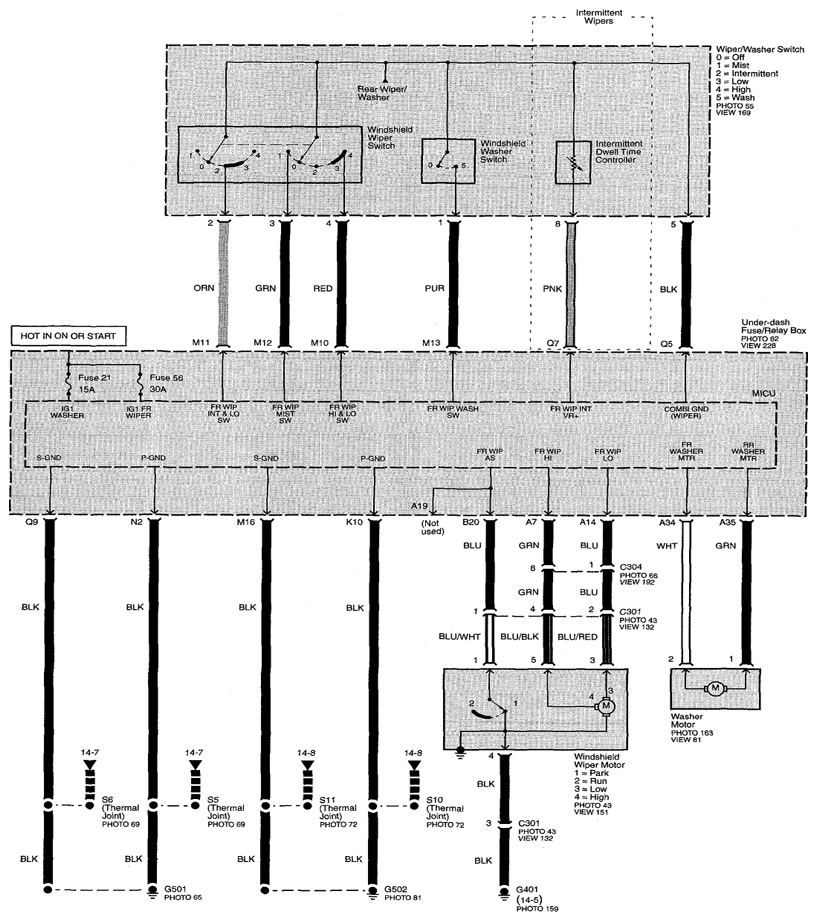

Fig 1: Front Wiper/Washer Circuit Diagram (Page 91)
