Ground Distribution: G101

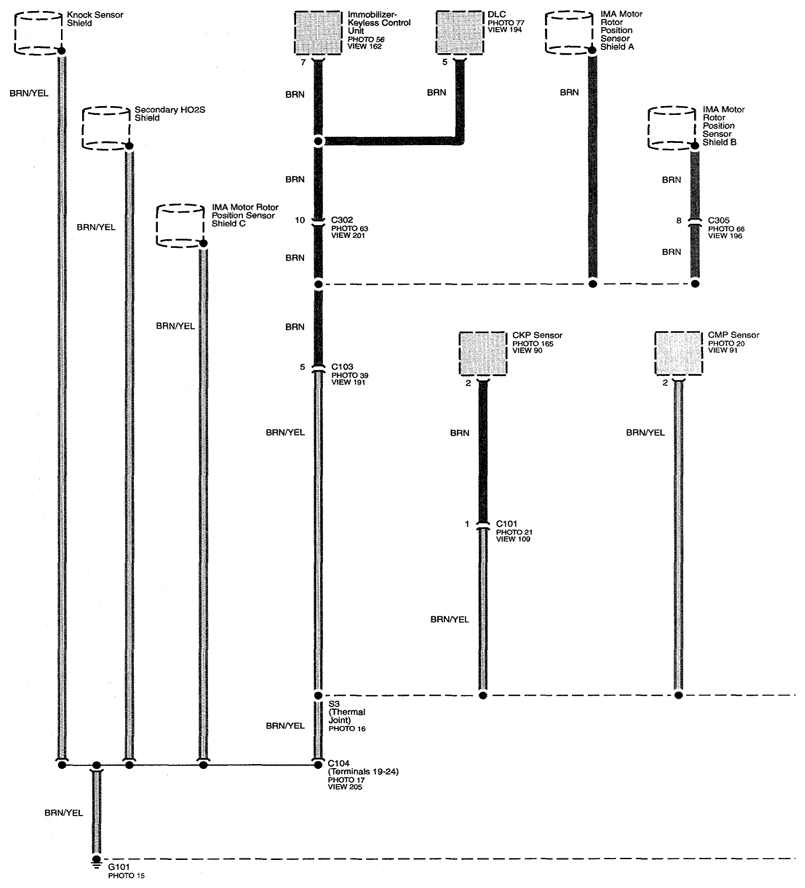

Fig 1: Ground Distribution Circuit Diagram - G101 (Page 14-1)
G07757114

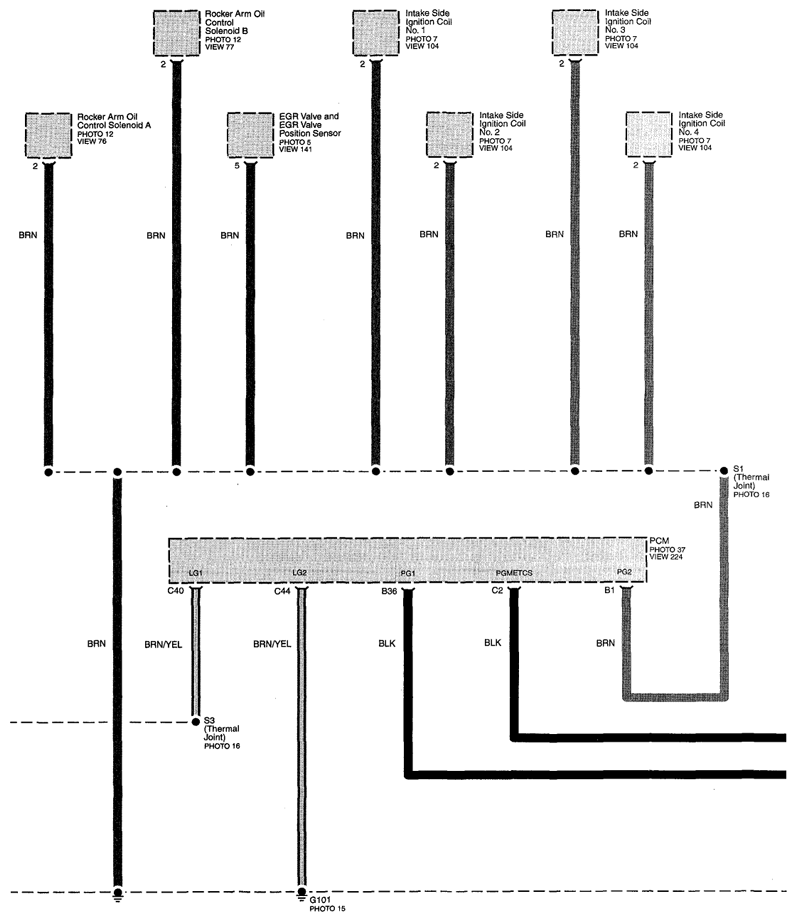

Fig 2: Ground Distribution Circuit Diagram - G101 (Page 14-2)
G07757115

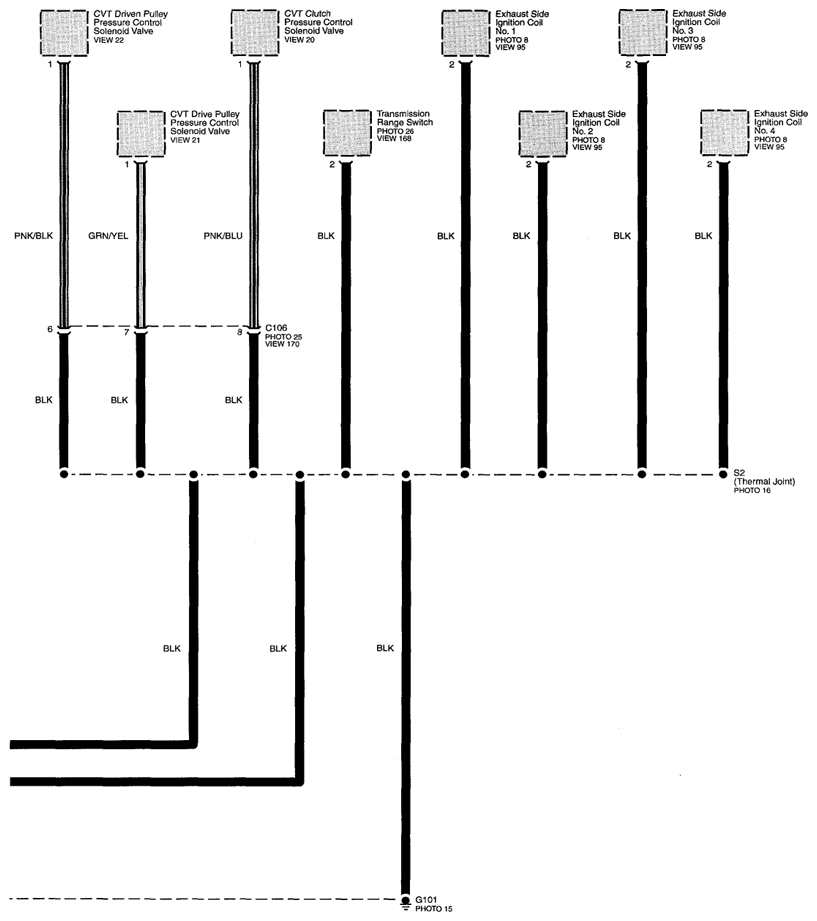

Fig 3: Ground Distribution Circuit Diagram - G101 (Page 14-3)
G07757116
