Home › Honda › 2011 › Insight Base › Repair and Diagnosis › Electrical › Body Electrical › OEM Circuit Diagrams › Ground Distribution › G202

Ground Distribution: G202

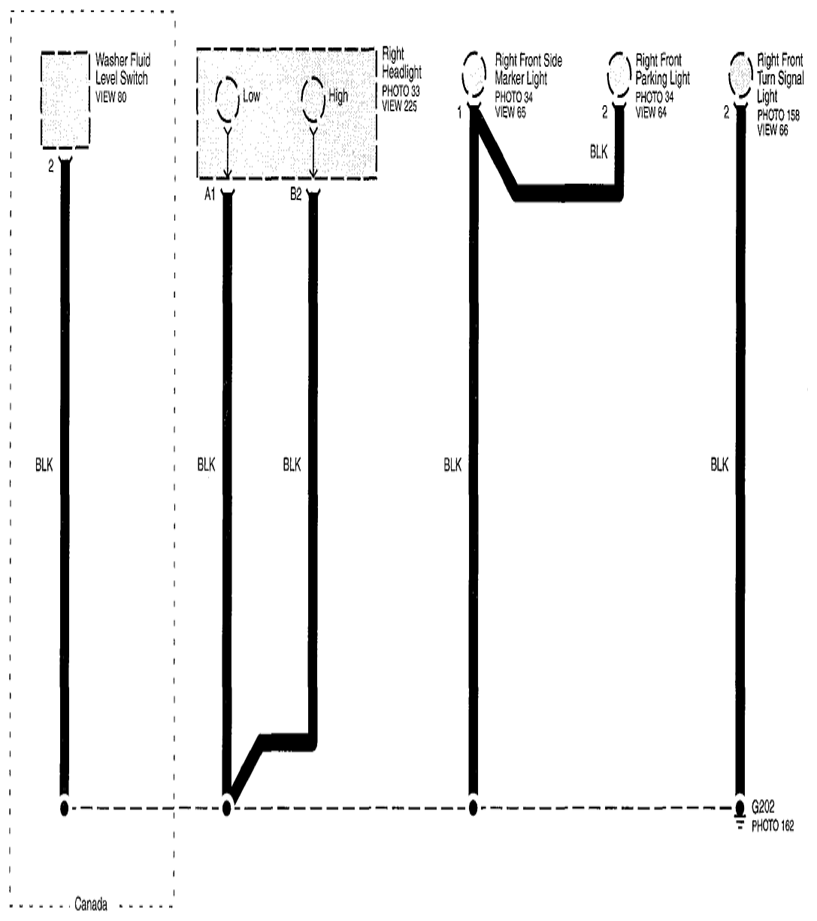

Fig 1: Ground Distribution Circuit Diagram - G202 (Page 14-4)
G07757117
