Home › Honda › 2011 › Insight Base › Repair and Diagnosis › Electrical › Body Electrical › OEM Circuit Diagrams › Ground Distribution › G702

Ground Distribution: G702

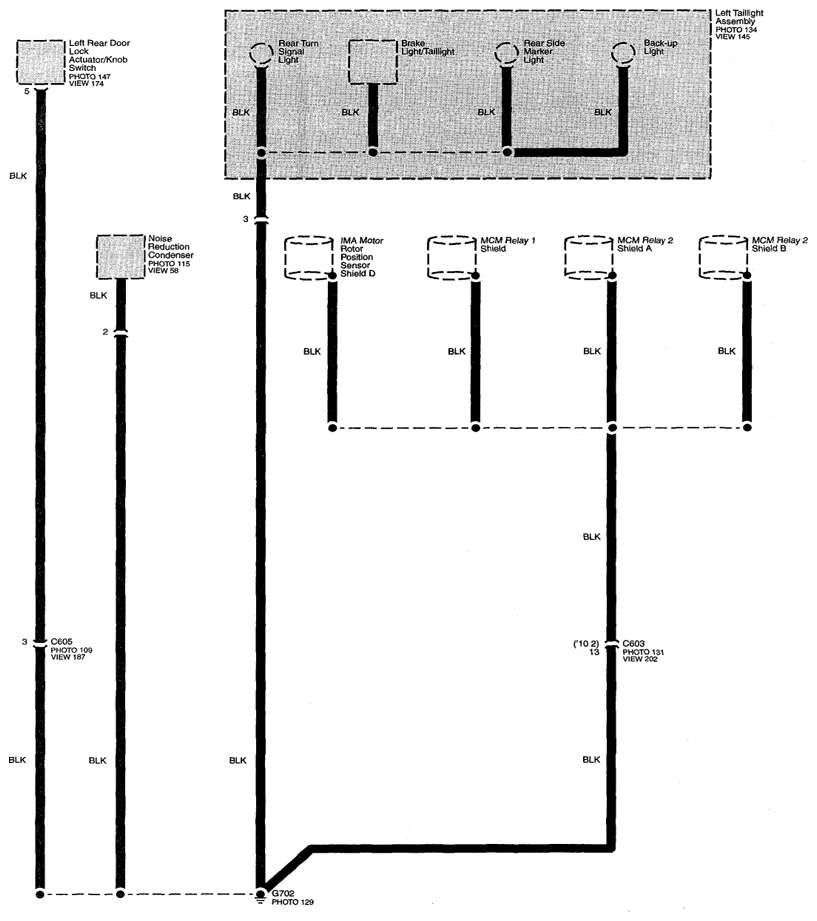

Fig 1: Ground Distribution Circuit Diagram - G702 (Page 14-12)
G07757128
