OEM Circuit Diagrams: HVAC

NOTE: For connector or component location "PHOTO", see OEM-COMPONENT LOCATION . For connector "VIEW", see OEM CONNECTOR END VIEWS .

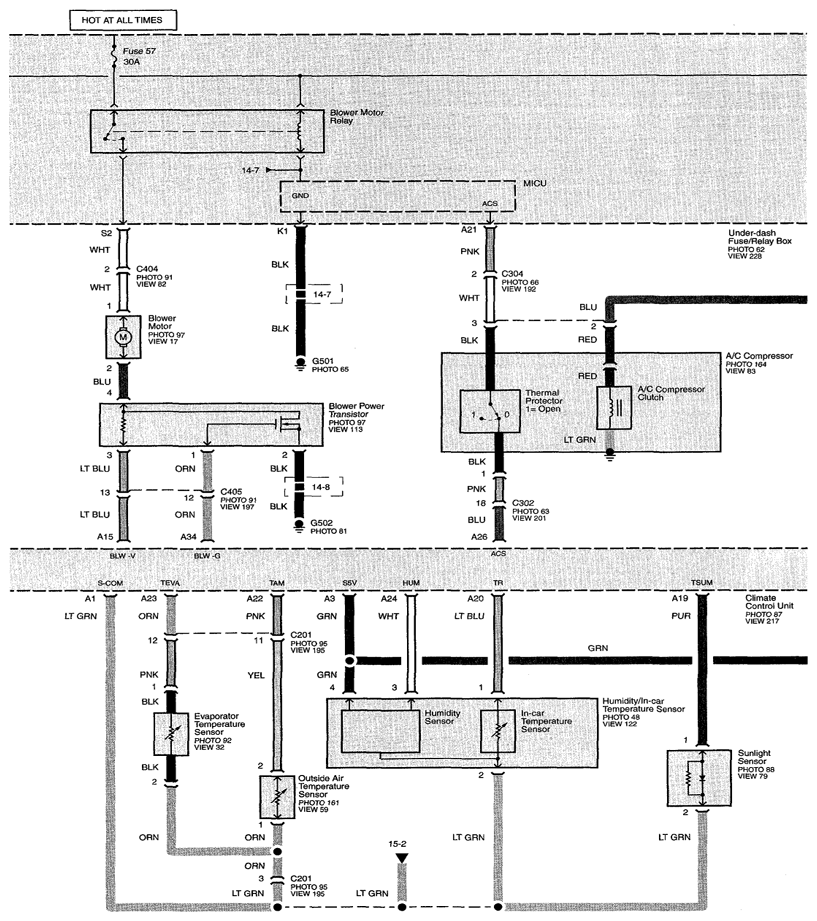

Fig 1: HVAC Circuit Diagram (Page 60)

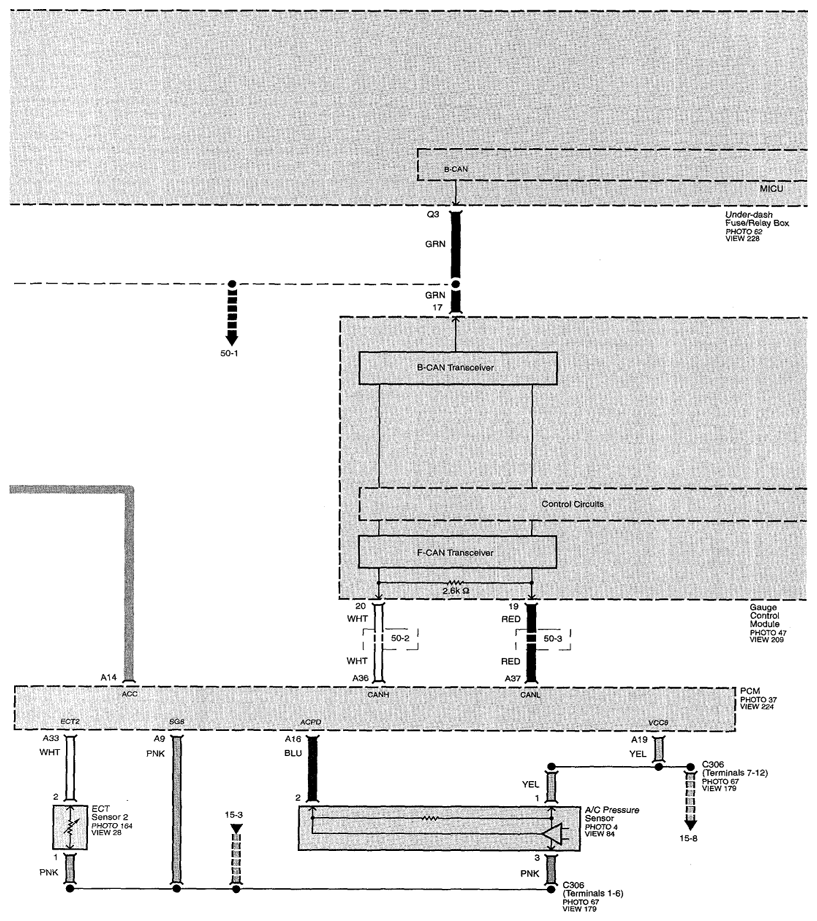

Fig 2: HVAC Circuit Diagram (Page 60-1)

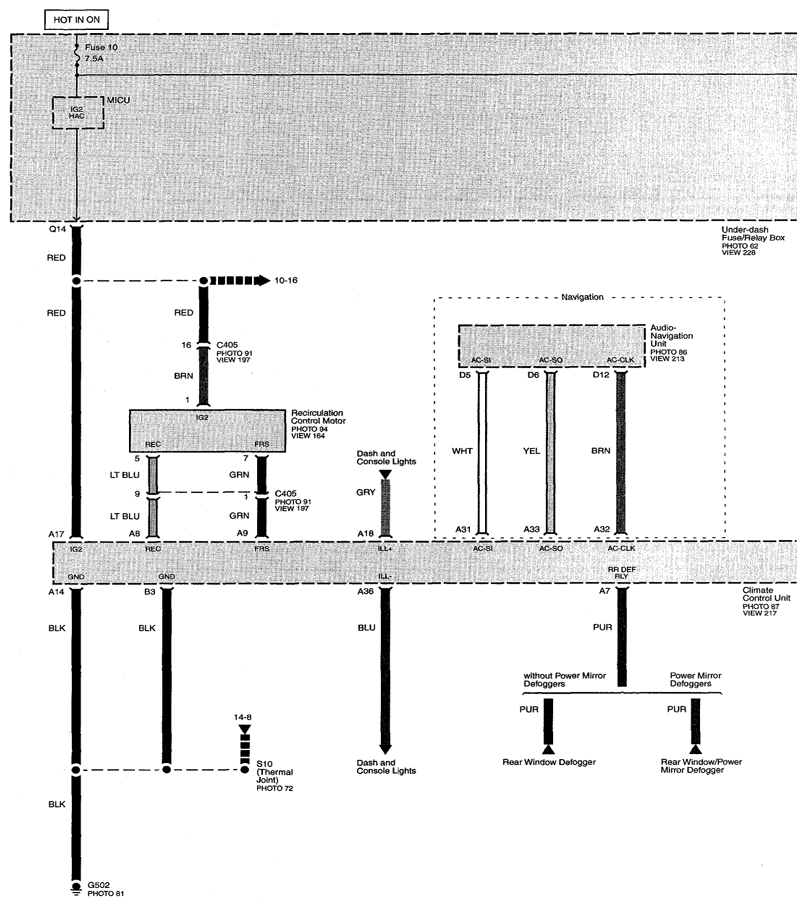

Fig 3: HVAC Circuit Diagram (Page 60-2)

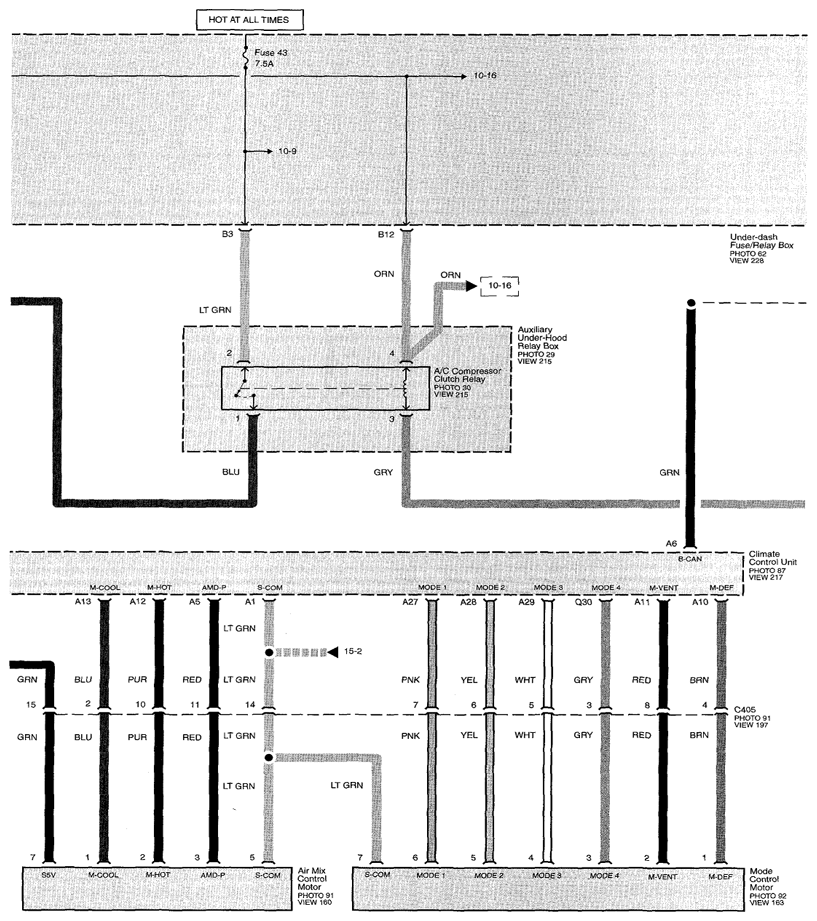

Fig 4: HVAC Circuit Diagram (Page 60-3)

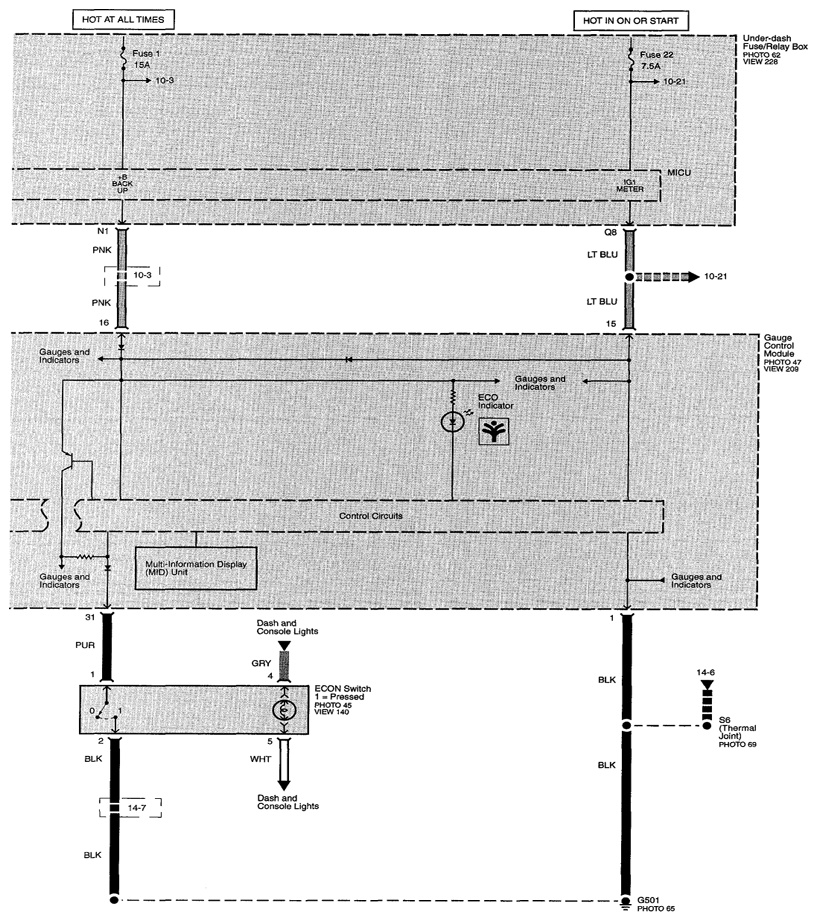

Fig 5: HVAC Circuit Diagram (Page 60-4)
