Ignition System

NOTE: For connector or component location "PHOTO", see OEM-COMPONENT LOCATION . For connector "VIEW", see OEM CONNECTOR END VIEWS .

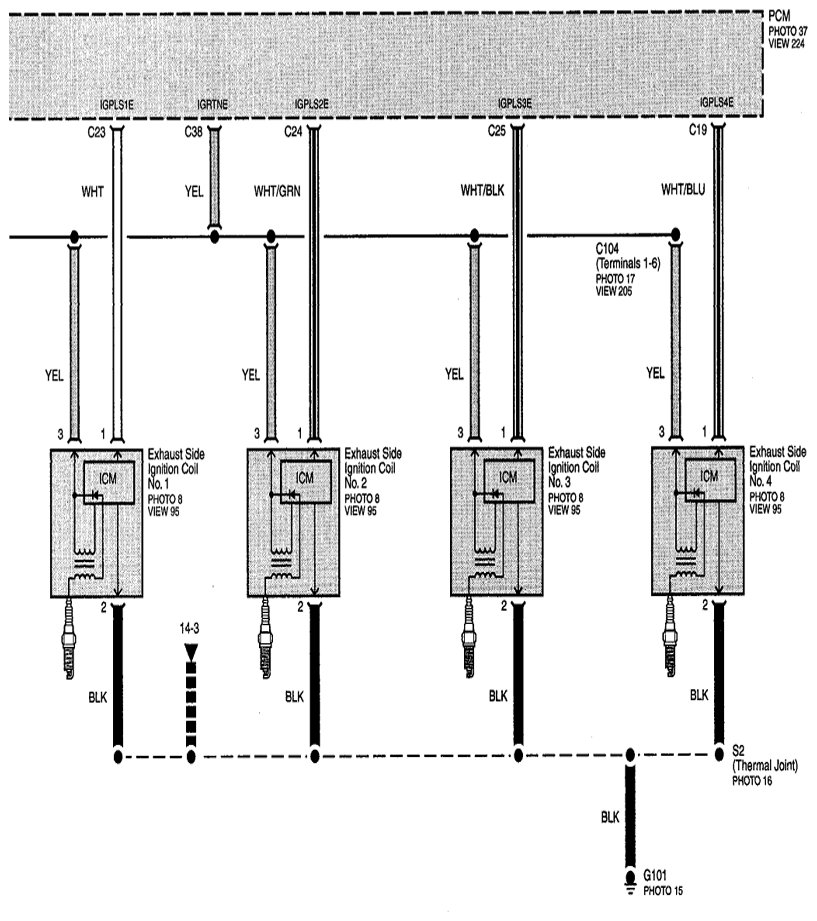

Fig 1: Ignition System Circuit Diagram (Page 20)

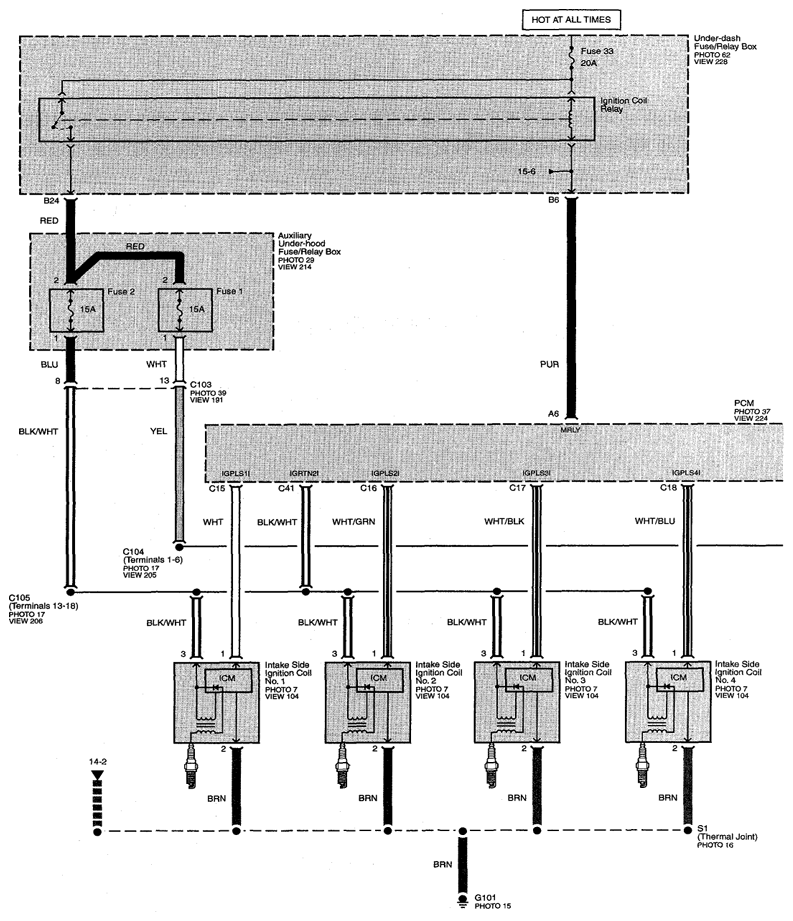

Fig 2: Ignition System Circuit Diagram (Page 20-1)
