F-CAN Communication Line (High)

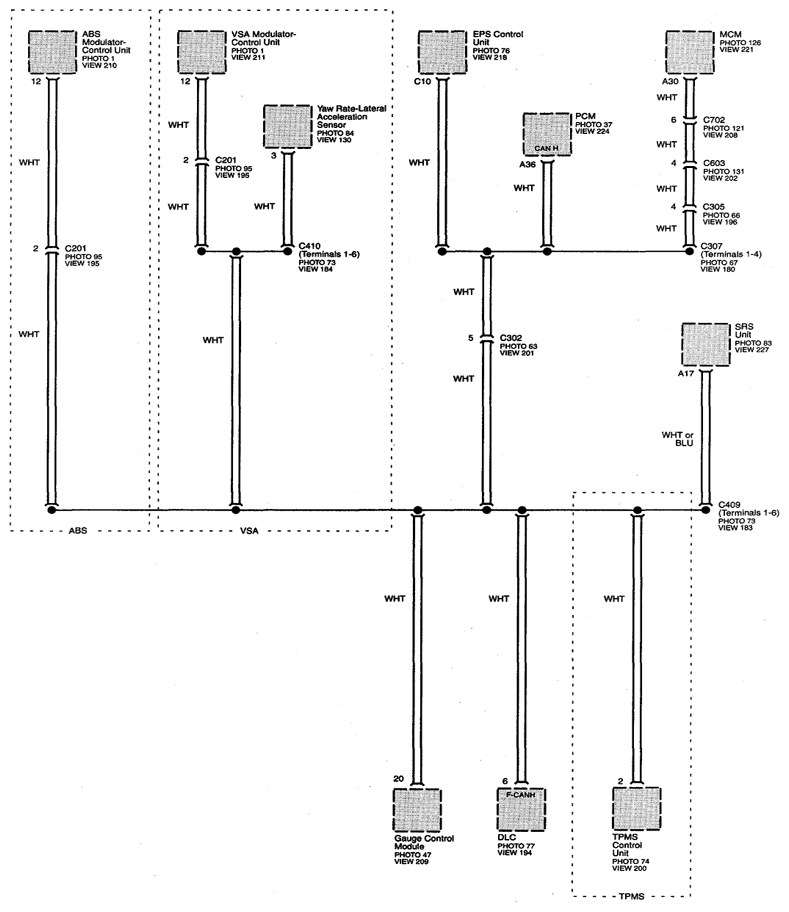

Fig 1: F-CAN Communication Line (High) Circuit Diagram (Page 50-2)
G07757202
