F-CAN Communication Line (Low)

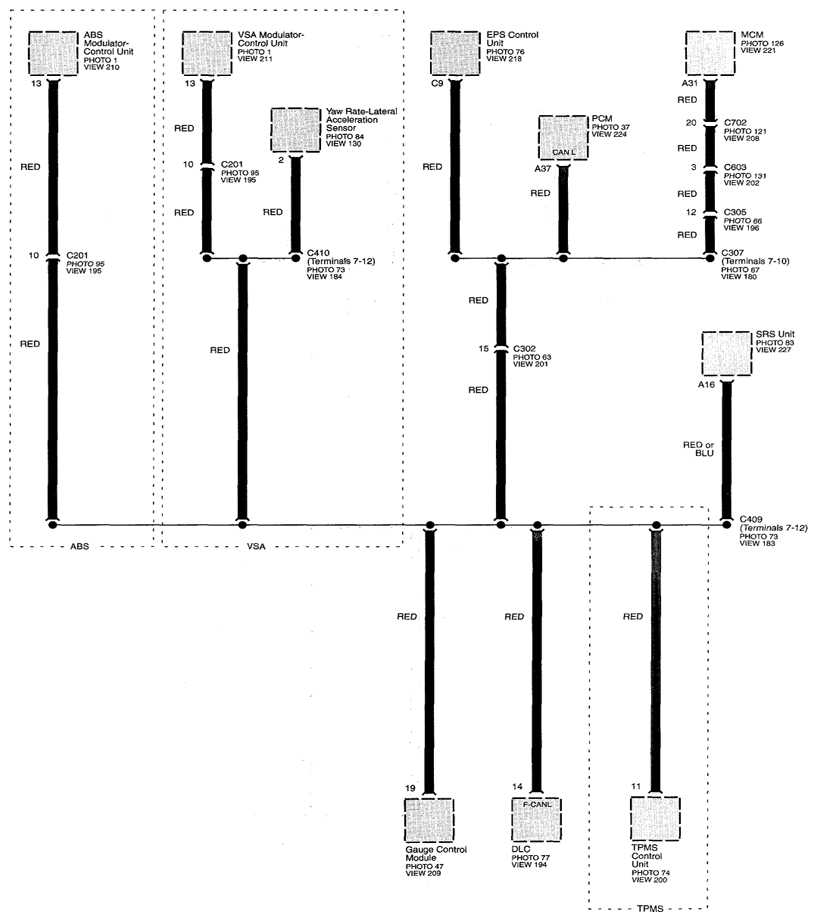

Fig 1: F-CAN Communication Line (Low) Circuit Diagram (Page 50-3)
G07757203
