Multiplex Integrated Control System
›
K-line Communication Line
K-line Communication Line

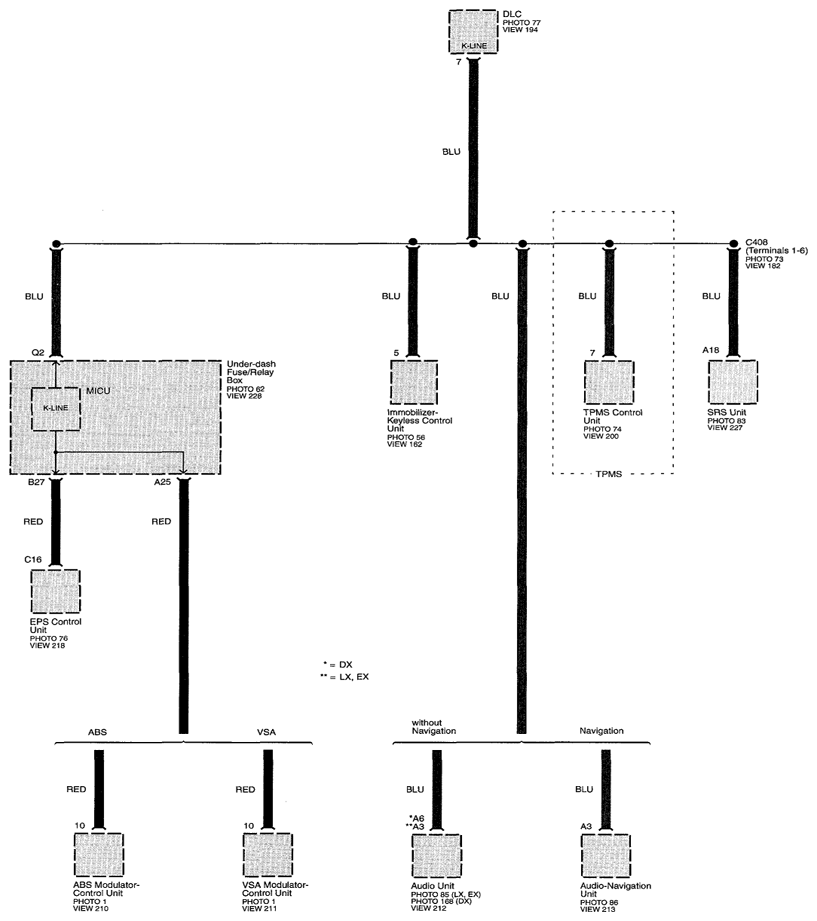

Fig 1: K-line Communication Line Circuit Diagram (Page 50-4)
