Power, Grounds and Diagnostics

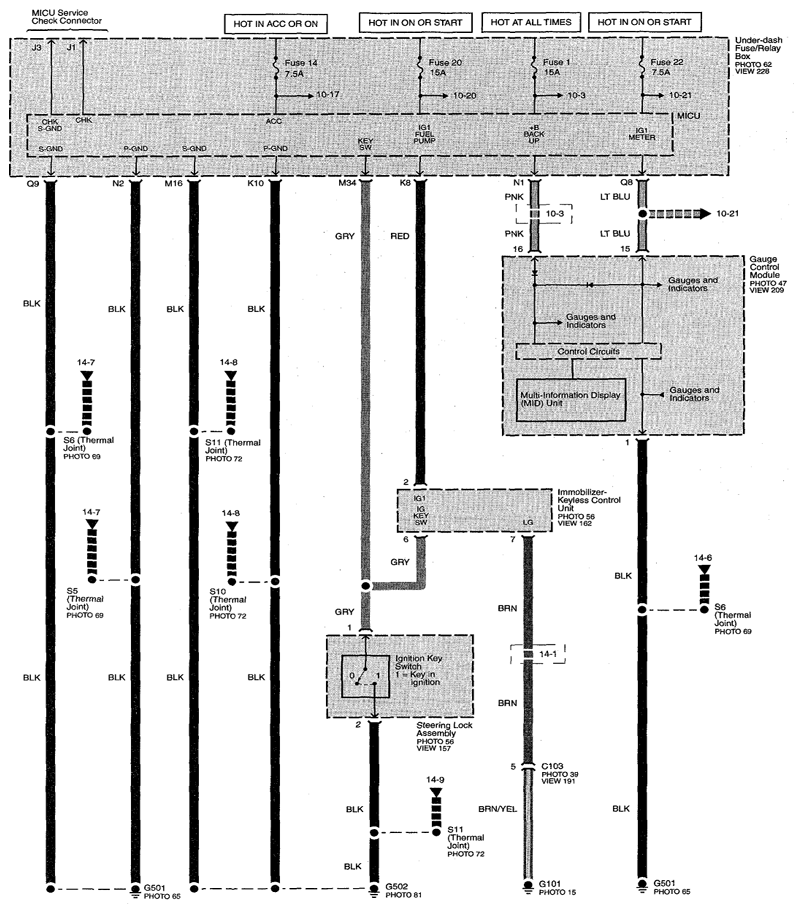

Fig 1: Power, Grounds And Diagnostics Circuit Diagram (Page 50)
G07757200
