Rear Wiper/Washer: Notes

NOTE: For connector or component location "PHOTO", see OEM-COMPONENT LOCATION . For connector "VIEW", see OEM CONNECTOR END VIEWS .

Fig 1: Rear Wiper/Washer Circuit Diagram (Page 92)

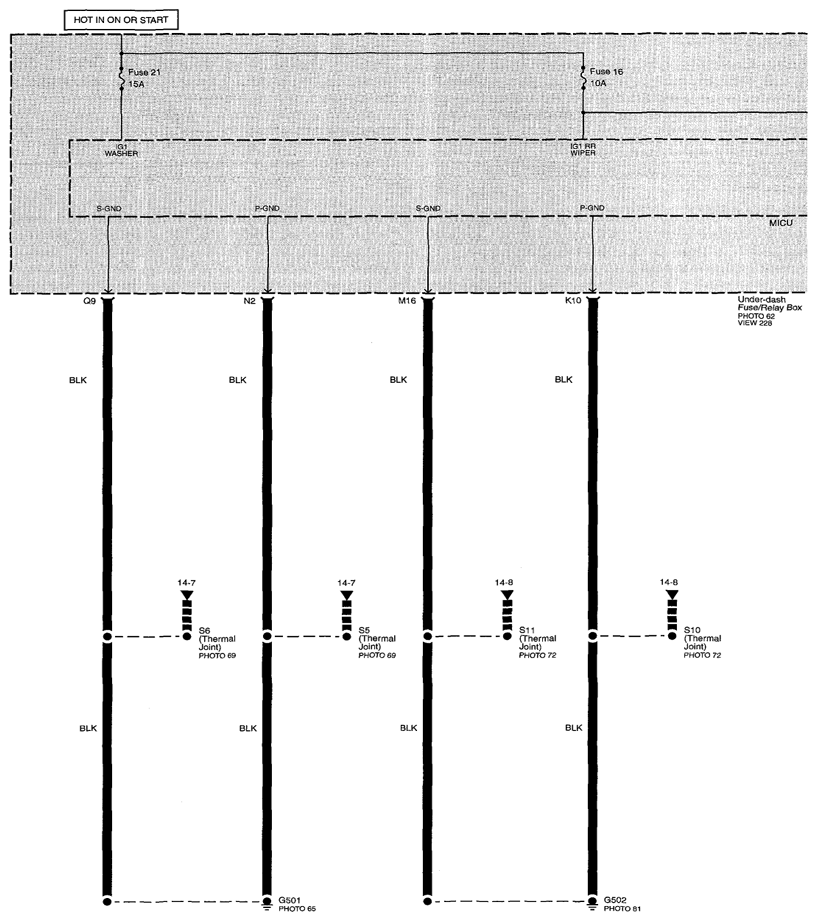

Fig 2: Rear Wiper/Washer Circuit Diagram (Page 92-1)

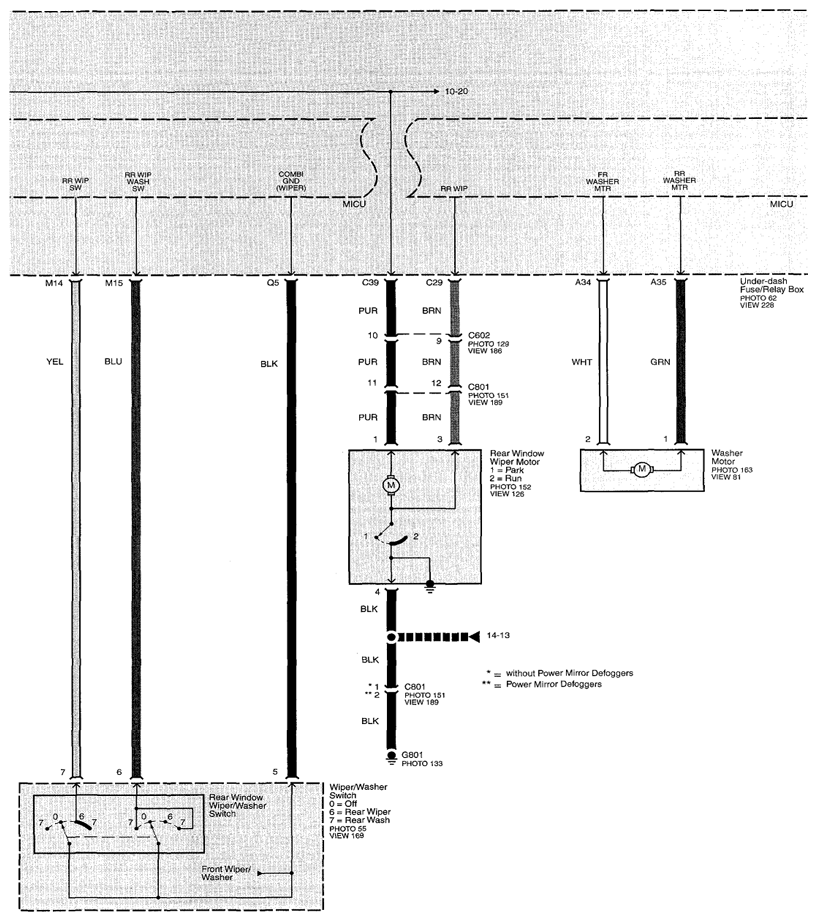

Fig 3: Rear Wiper/Washer Circuit Diagram (Page 92-2)
