OEM Circuit Diagrams: SRS

NOTE: For connector or component location "PHOTO", see OEM-COMPONENT LOCATION . For connector "VIEW", see OEM CONNECTOR END VIEWS .

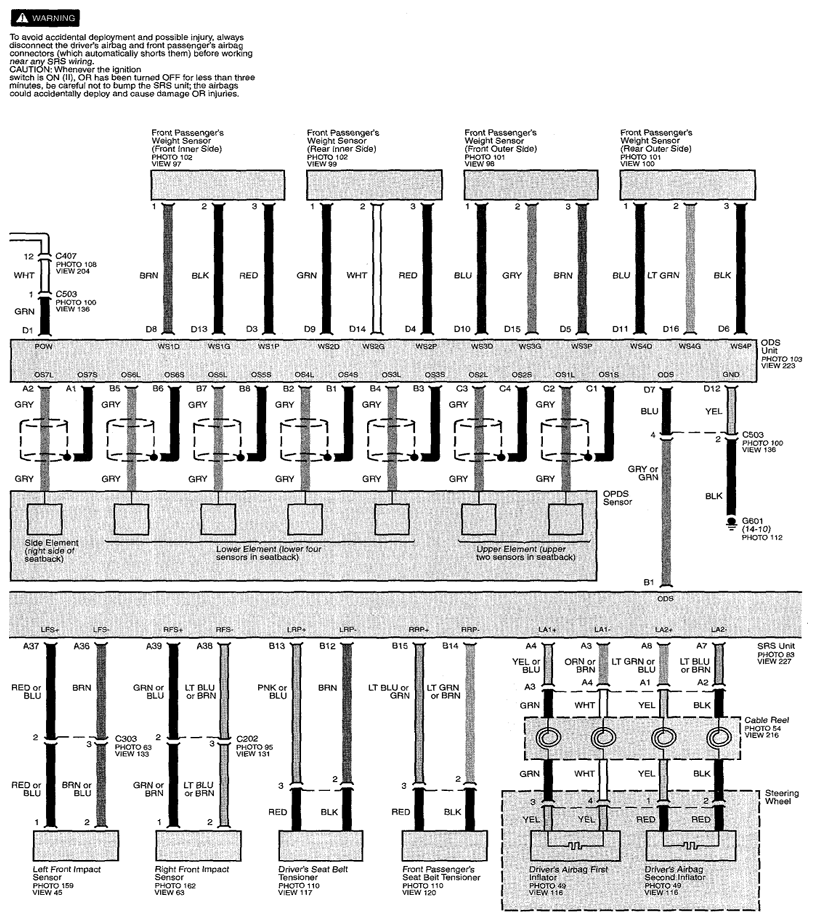

Fig 1: SRS Circuit Diagram (Page 47)

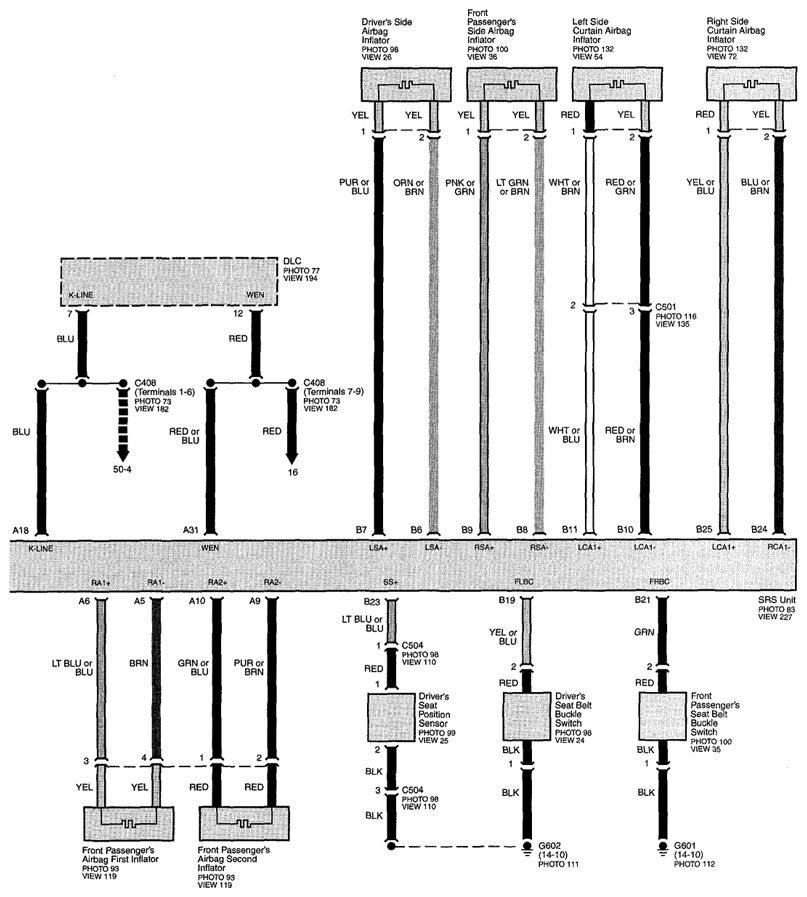

Fig 2: SRS Circuit Diagram (Page 47-1)

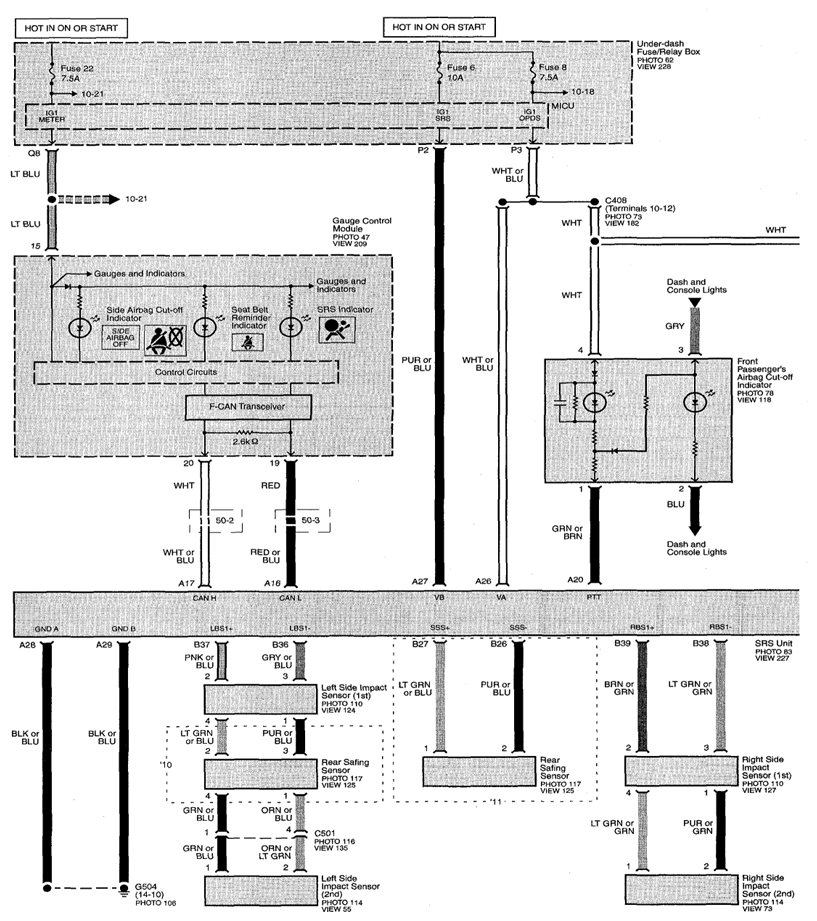

Fig 3: SRS Circuit Diagram (Page 47-2)
