Safety Indicator

NOTE: For connector or component location "PHOTO", see OEM-COMPONENT LOCATION . For connector "VIEW", see OEM CONNECTOR END VIEWS .

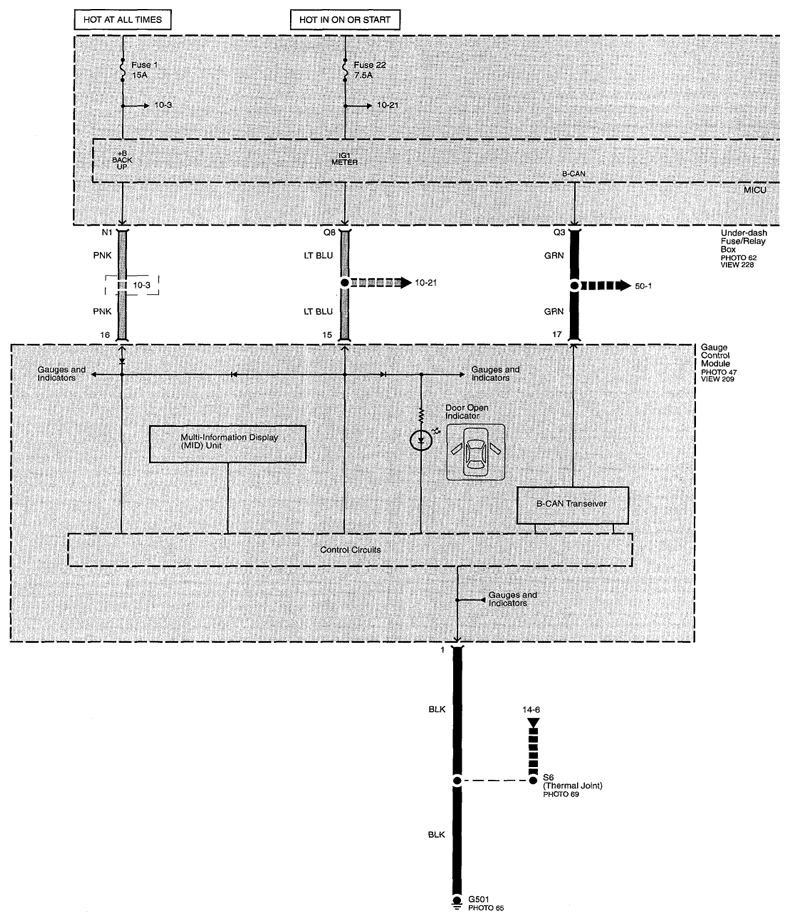

Fig 1: Safety Indicator Circuit Diagram (Page 84)

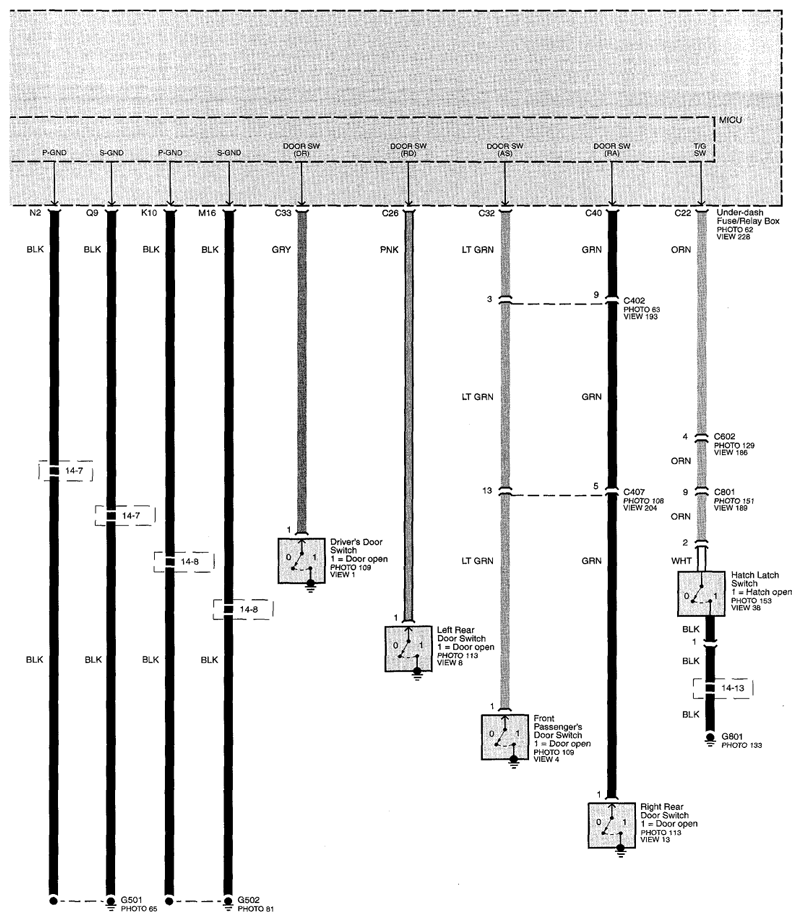

Fig 2: Safety Indicator Circuit Diagram (Page 84-1)
