Starting System

NOTE: For connector or component location "PHOTO", see OEM-COMPONENT LOCATION . For connector "VIEW", see OEM CONNECTOR END VIEWS .

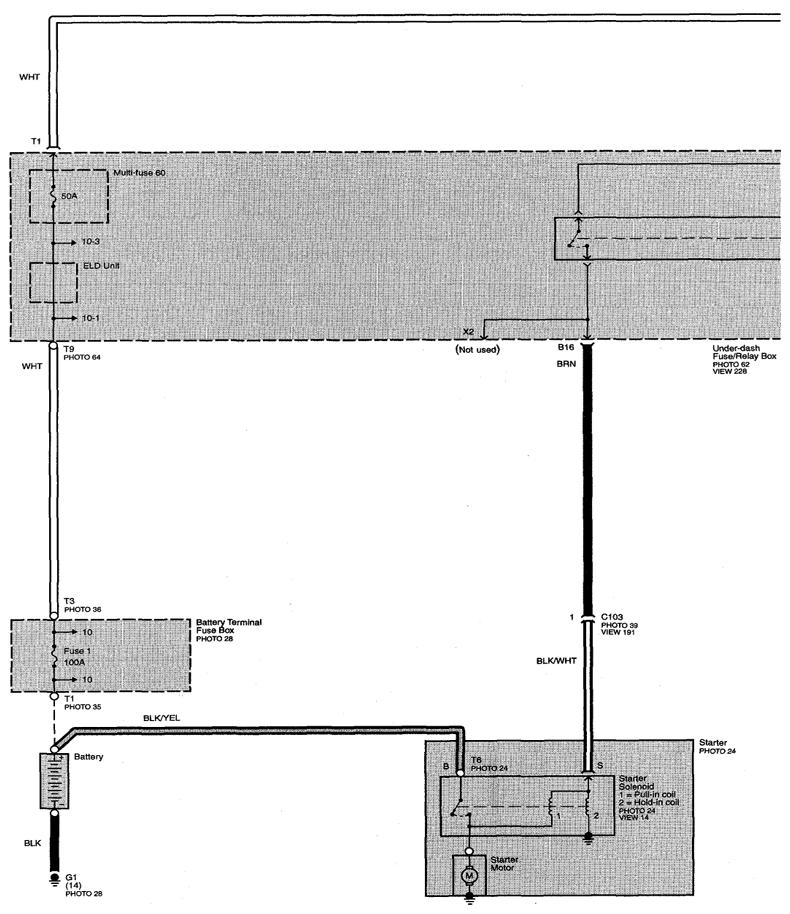

Fig 1: Starting System Circuit Diagram (Page 21)

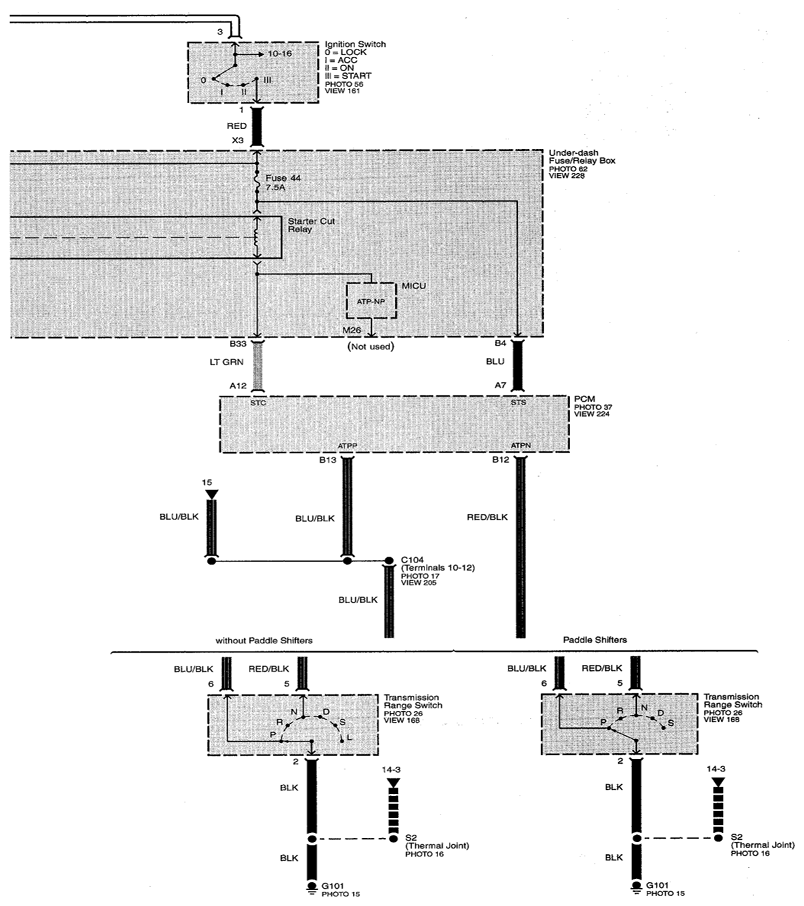

Fig 2: Starting System Circuit Diagram (Page 21-1)
