OEM Circuit Diagrams: VSA

NOTE: For connector or component location "PHOTO", see OEM-COMPONENT LOCATION . For connector "VIEW", see OEM CONNECTOR END VIEWS .

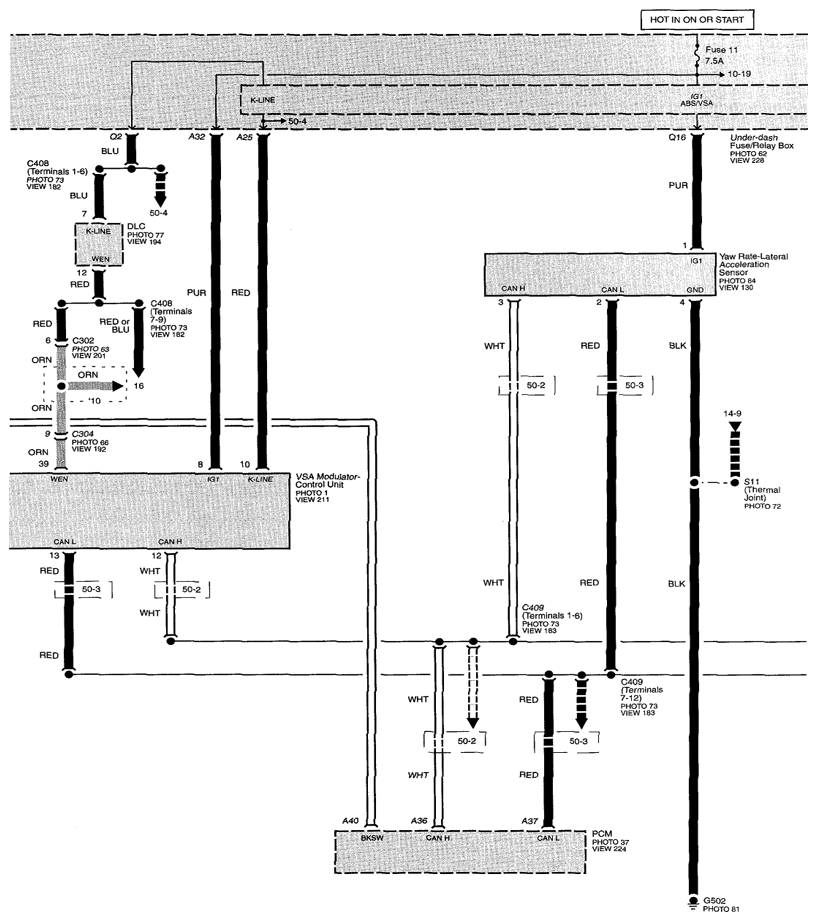

Fig 1: VSA Circuit Diagram (Page 36)

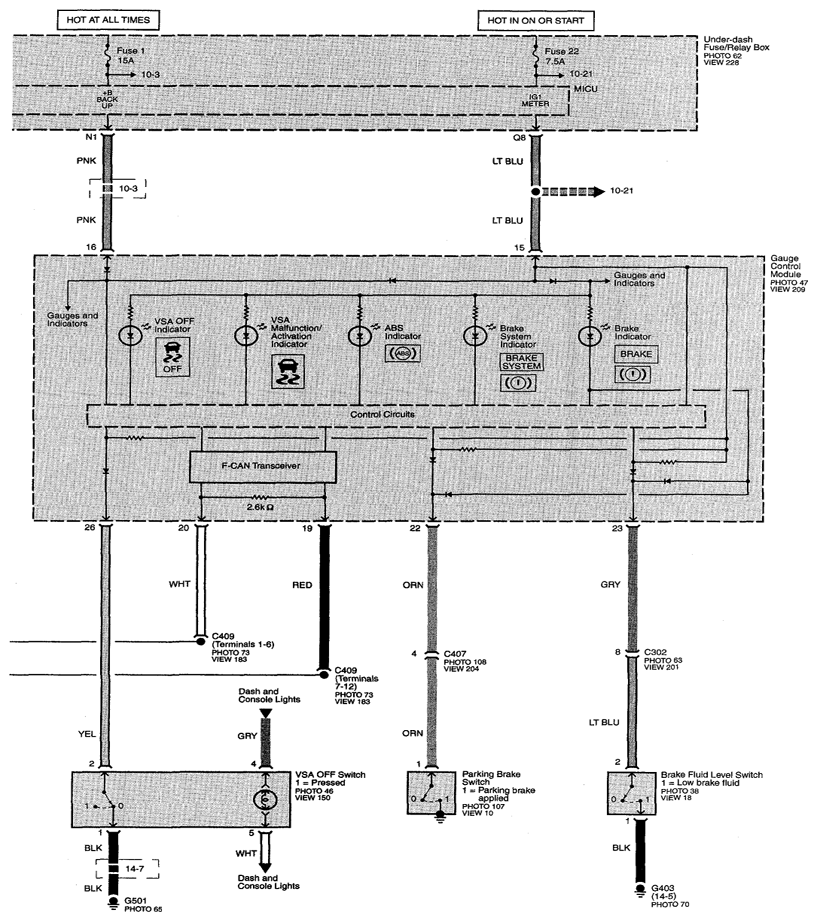

Fig 2: VSA Circuit Diagram (Page 36-1)

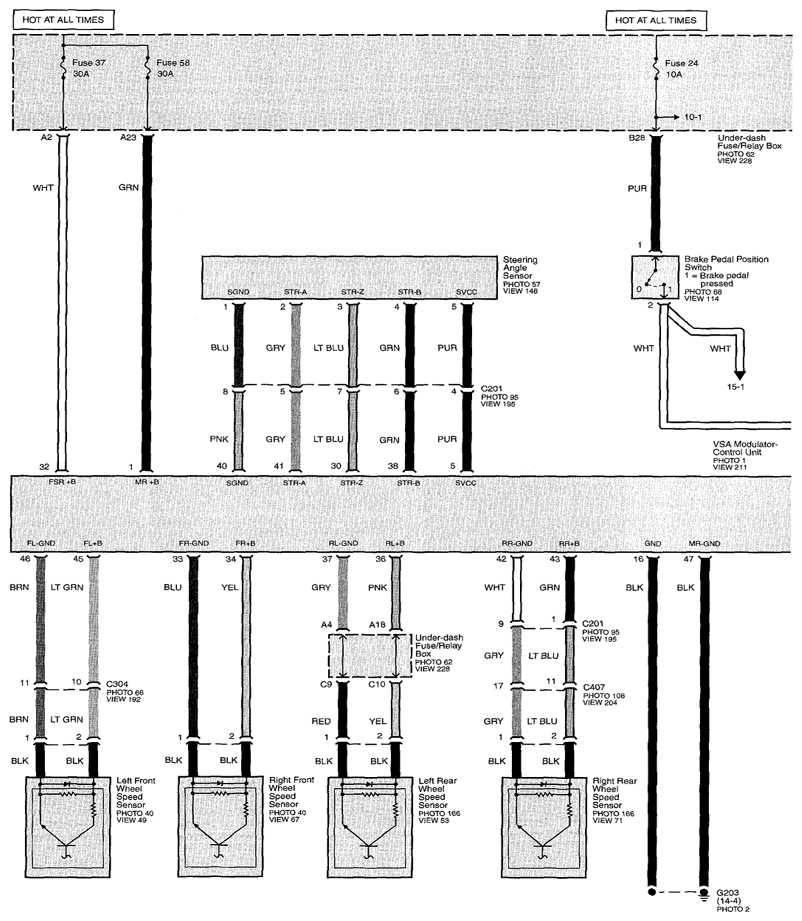

Fig 3: VSA Circuit Diagram (Page 36-2)
