ABS Modulator-Control Unit Connector End View (ABS) (View 210)

• BLK/WHT
• Right Side of Engine Compartment
• On Right Engine Compartment Wire Harness

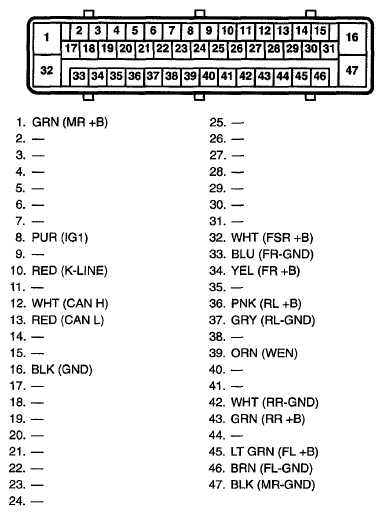

Fig 1: ABS Modulator-Control Unit (ABS) Connector Terminal (View 210)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
