Audio-Navigation Unit Connector End View (Navigation) (View 213)

Behind Audio-Navigation Unit
Connector A
- GRY/WHT
- On Dashboard Wire Harness
Fig 1: Audio-Navigation Unit (Navigation) Connector Terminal - Connector A (View 213)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector B
- GRY
- On Dashboard Wire Harness
Fig 2: Audio-Navigation Unit (Navigation) Connector Terminal - Connector B (View 213)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector C
- GRY
- On Dashboard Wire Harness
Fig 3: Audio-Navigation Unit (Navigation) Connector Terminal - Connector C (View 213)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector D
- GRY
- On Dashboard Wire Harness
Fig 4: Audio-Navigation Unit (Navigation) Connector Terminal - Connector D (View 213)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

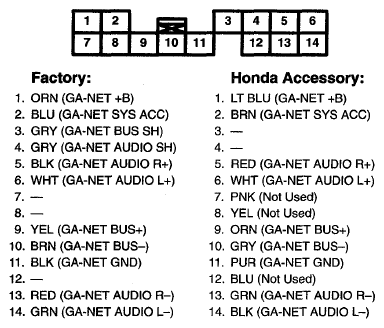

Connector E
- WHT
- On Dashboard Wire Harness (Factory)
- On XM Radio Harness (Honda Accessory)
Fig 5: Audio-Navigation Unit (Navigation) Connector Terminal - Connector E (View 213)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector G
- GRY
- On AM/FM Antenna Sub-lead Harness
Fig 6: Audio-Navigation Unit (Navigation) Connector Terminal - Connector G (View 213)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector H
- GRY
- On GPS Antenna Harness
Fig 7: Audio-Navigation Unit (Navigation) Connector Terminal - Connector H (View 213)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
