C411 Connector End View (View 199)

• WHT
• Behind Glove Box
• Connects Dashboard Wire Harness to Front Passenger's Door Wire Harness

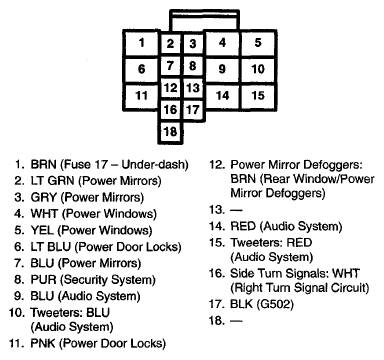

Fig 1: C411 Connector Terminal (View 199)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
