HandsFreeLink Control Unit Connector End View (Navigation) (View 207)

• GRY
• Behind Glove Box
• On Dashboard Wire Harness

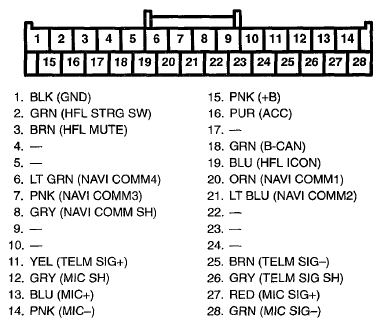

Fig 1: HandsFreeLink Control Unit (Navigation) Connector Terminal (View 207)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
