VSA Modulator-Control Unit Connector End View (VSA) (View 211)

• BLK/WHT
• Right Side of Engine Compartment
• On Right Engine Compartment Wire Harness

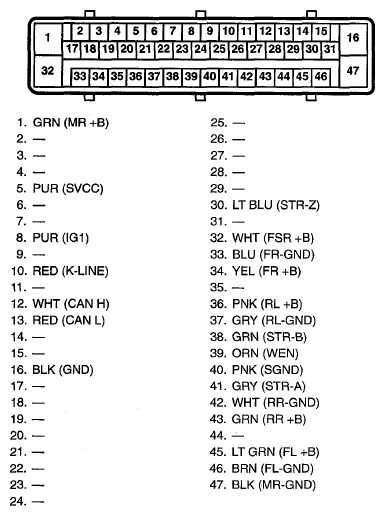

Fig 1: VSA Modulator-Control Unit (VSA) Connector Terminal (View 211)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
