Relays And Control Unit Locations
›
Door and Rear
Door and Rear
Driver's Door

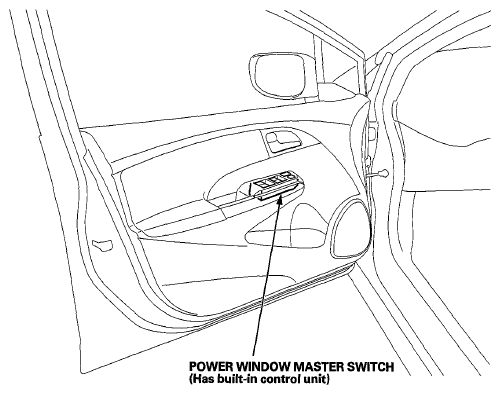

Fig 1: Relay And Control Unit Location - Driver's Door
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Rear

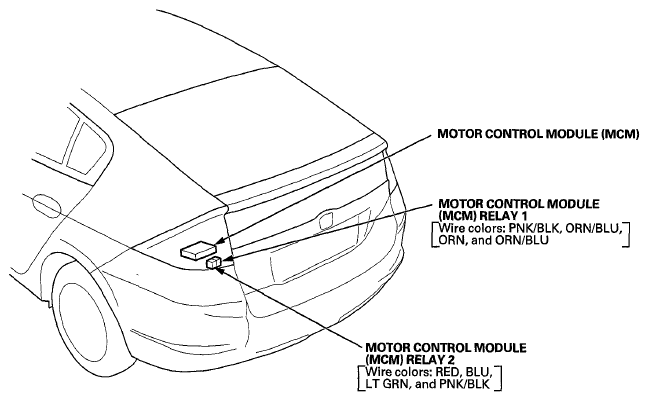

Fig 2: Relay And Control Unit Location - Rear
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
