Component Location index
Component Location index

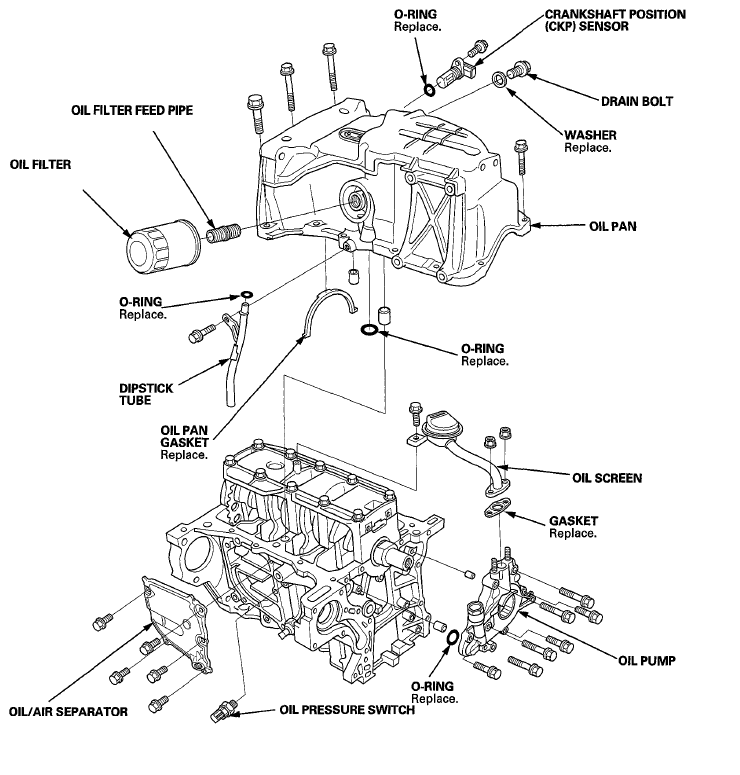

Fig 1: Identifying Engine Lubrication Component Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.
