Rocker Arm Assembly Installation

  1. Reassemble the rocker arm assembly (see ROCKER ARM AND SHAFT DISASSEMBLY/REASSEMBLY  ).
  2. Apply new engine oil to the camshaft lobes and journals.
  3. Install the rocker arm assembly.

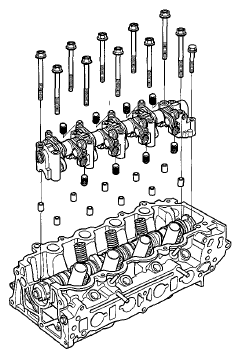

    Fig 1: Identifying Rocker Arm Assembly
    G06428951
  4. Apply new engine oil to the bolt threads and flange. Tighten each bolt two turns at a time in sequence.

    Specified Torque

    8 mm Bolts: 22 N.m (2.2 kgf.m, 16 lbf.ft)

    8 mm Bolts: (11), (13) 20 N.m (2.0 kgf.m, 14 lbf.ft)

    6 mm Bolt: (12) 12 N.m (1.2 kgf.m, 8.7 lbf.ft)

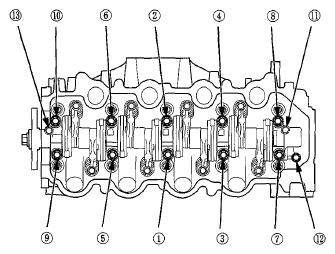

    Fig 2: Identifying Bolts Tightening Sequence
    G06428952
  5. Install the camshaft sprocket (see CAMSHAFT SPROCKET INSTALLATION  ).
  6. Adjust the valve clearance (see VALVE CLEARANCE ADJUSTMENT  ).
