Rocker Arm Assembly Removal

Remove the camshaft sprocket (see INSTALLATION ).
Loosen the rocker arm adjusting screws (A).

Fig 1: Identifying Rocker Arm Adjusting Screws
Remove the camshaft holder bolts. To prevent damaging the camshaft, loosen the bolts in sequence two turns at a time, in a crisscross pattern.

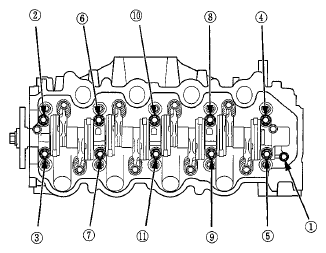

Fig 2: Identifying Camshaft Holder Bolts Removing Sequence
Remove the rocker arm assembly.

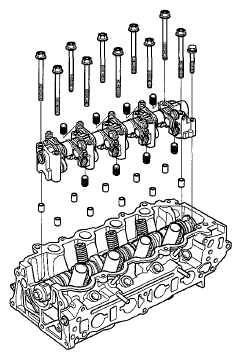

Fig 3: Identifying Rocker Arm Assembly With Bolts
