System Description
›
Vacuum Hose Routing
Vacuum Hose Routing

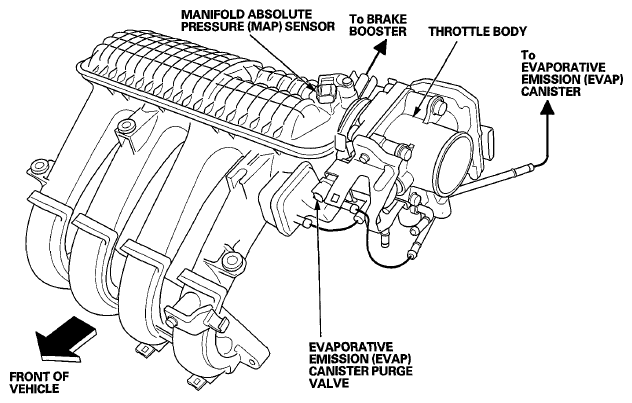

Fig 1: Identifying Intake Manifold Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
