Circuit Diagram - PCM CVT Control System-Six-position Transmission
Circuit Diagram - PCM CVT Control System-Six-position Transmission

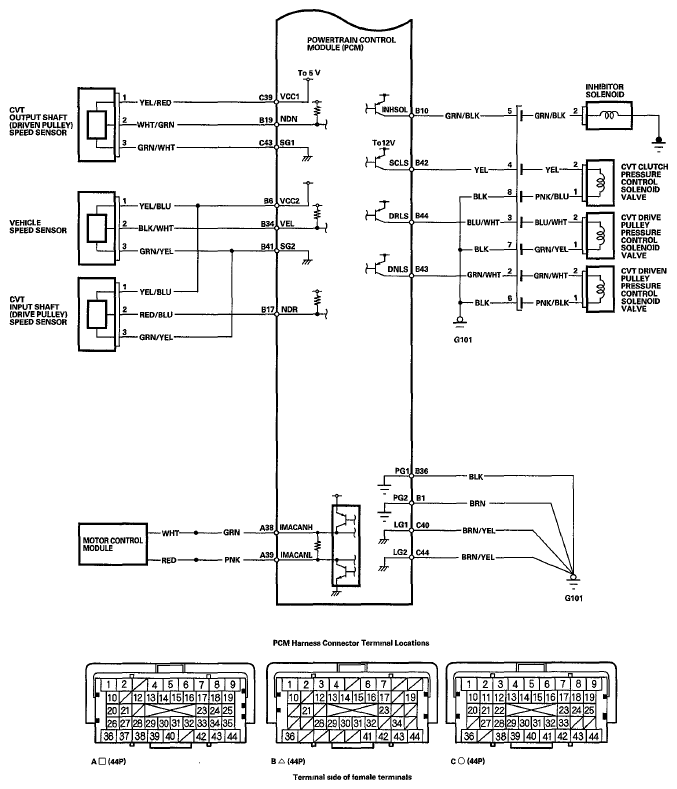

Fig 1: PCM CVT Control System-Six Position Transmission - Circuit Diagram (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

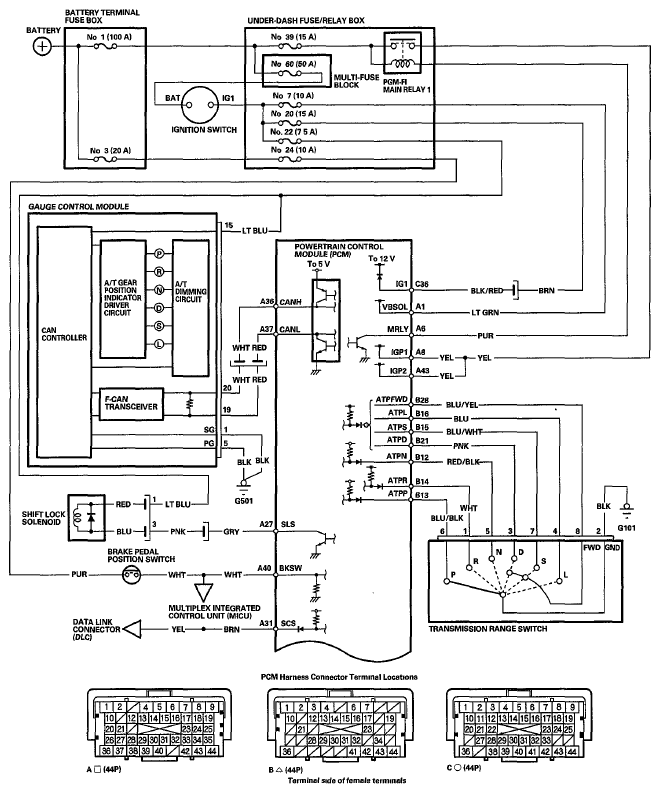

Fig 1: PCM CVT Control System-Six Position Transmission - Circuit Diagram (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
